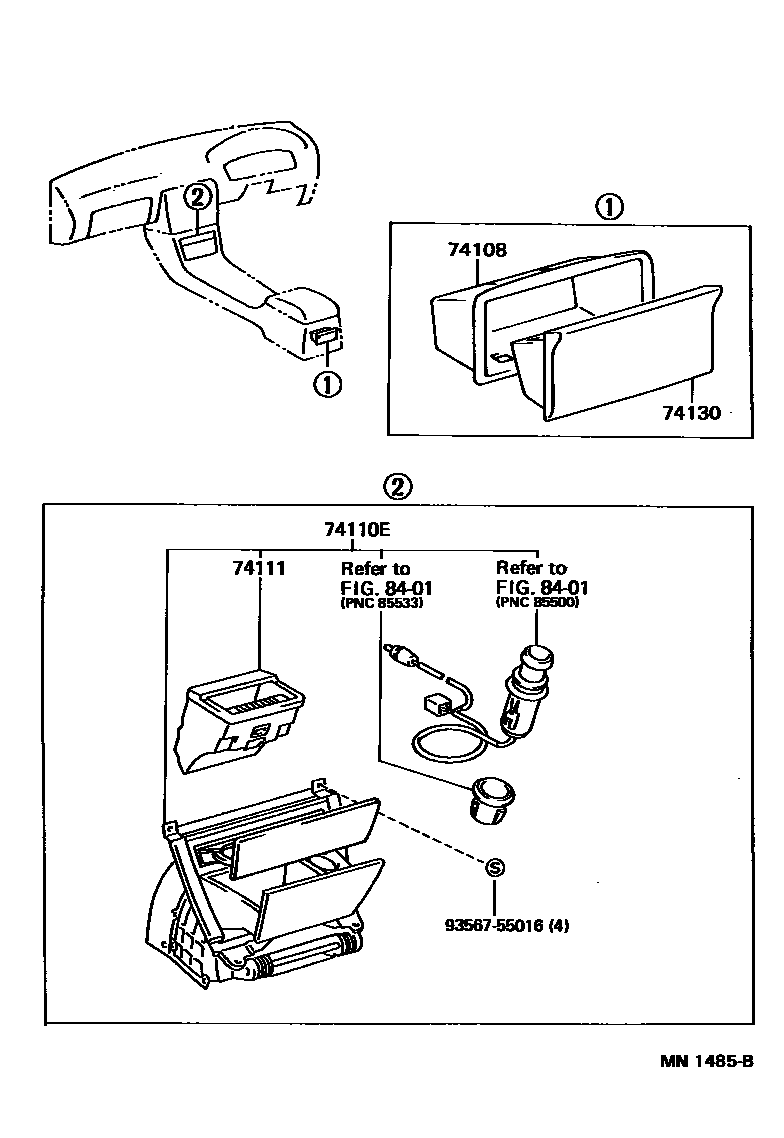

Toyota WINDOM — ASH RECEPTACLE

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-24010i199110-199608

74110ERECEPTACLE ASSY, FRONT ASH

main74110-33040i199110-199408

main74110-33050i199408-199608

74111BOX, FRONT ASH RECEPTACLE

main74111-33010i199110-199608

74130RECEPTACLE ASSY, REAR ASH

main74109-24020-01i199110-199401

BLACK,TRIM2#

main74109-24020-02i199110-199408

TAUPE,TRIM9#

main74109-24020-05i199110-199308

GREIGE,TRIM0#

main74109-24020-22i199401-199608

BLACK,TRIM2#

main74109-24020-E0i199308-199408

OAK,TRIM4#

main74109-24020-K0i199408-199608

TAUPE,TRIM9#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9356755016

main93567-55016

6 parts on this diagram · 1 diagram in section

ASH RECEPTACLE for Toyota WINDOM

This section contains 6 genuine Toyota parts for the ASH RECEPTACLE system of the Toyota WINDOM. Key components include: RETAINER SUB-ASSY, REAR ASH RECEPTACLE, RECEPTACLE ASSY, FRONT ASH, BOX, FRONT ASH RECEPTACLE, RECEPTACLE ASSY, REAR ASH, SWITCH & RELAY & COMPUTER.
