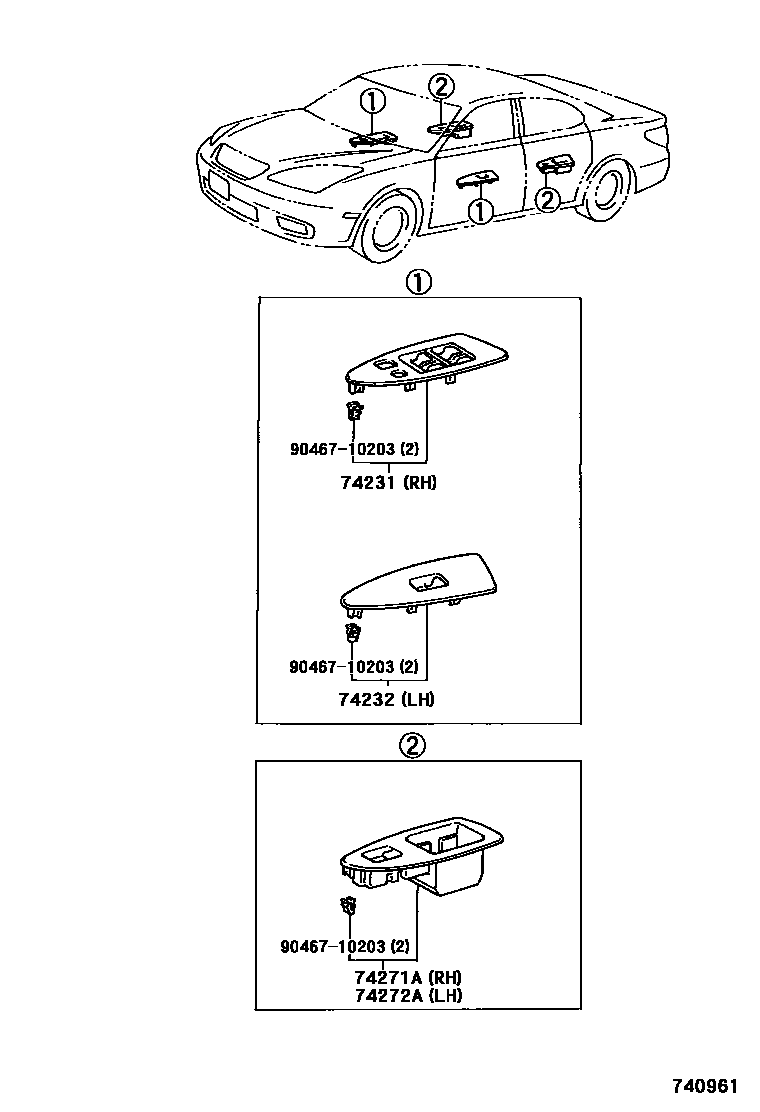

Toyota WINDOM — ARMREST & VISOR

0001 1�-���� 0002 1����� & ����������

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-33290-A0iMCV30200107-200406

IVORY,TRIM0#

main74231-33290-A1iMCV30200406-200603

IVORY,TRIM0#

main74231-33290-C0iMCV30200107-200406

BLACK,TRIM2#

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-33240-A0iMCV30200107-200406

IVORY,TRIM0#

main74232-33240-A1iMCV30200406-200603

IVORY,TRIM0#

main74232-33240-C0iMCV30200406-200603

BLACK,TRIM2#

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-33130-A0iMCV30200107-200406

IVORY,TRIM0#

main74271-33130-A1iMCV30200406-200603

IVORY,TRIM0#

main74271-33130-C0iMCV30200107-200406

BLACK,TRIM2#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-33130-A0iMCV30200107-200406

IVORY,TRIM0#

main74272-33130-A1iMCV30200406-200603

IVORY,TRIM0#

main74272-33130-C0iMCV30200107-200406

BLACK,TRIM2#

9046710203

main90467-10203

5 parts on this diagram · 2 diagrams in section
