Toyota WINDOM — ARMREST & VISOR

0001 1�-���� 0002 1�������-

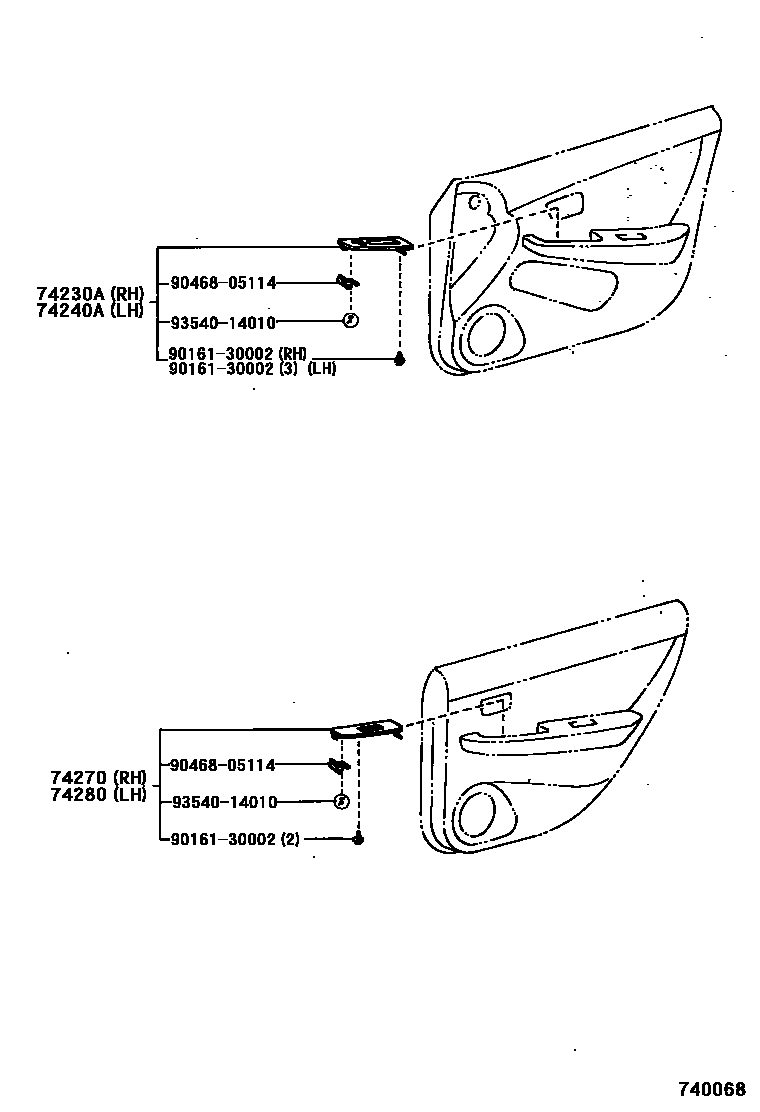

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-33020iMCV2#199608

main74230-33040iMCV2#..25G,30G199908

main74230-33060iMCV2#..25G,30G200001-200004

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-33020iMCV2#199608-199808

main74240-33030iMCV2#199808

main74240-33040iMCV2#..25G,30G199908

main74240-33060iMCV2#..25G,30G200001-200004

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74270-33020iMCV2#199608

main74270-33030iMCV2#..25G,30G199908

main74270-33050iMCV2#..25G,30G200101-200105

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74280-33020iMCV2#199608

main74280-33030iMCV2#..25G,30G199908

main74280-33050iMCV2#..25G,30G200001-200004

9016130002

main90161-30002

9046805114

main90468-05114

9354014010

main93540-14010

7 parts on this diagram · 2 diagrams in section
