Toyota WINDOM — ACCELERATOR LINK

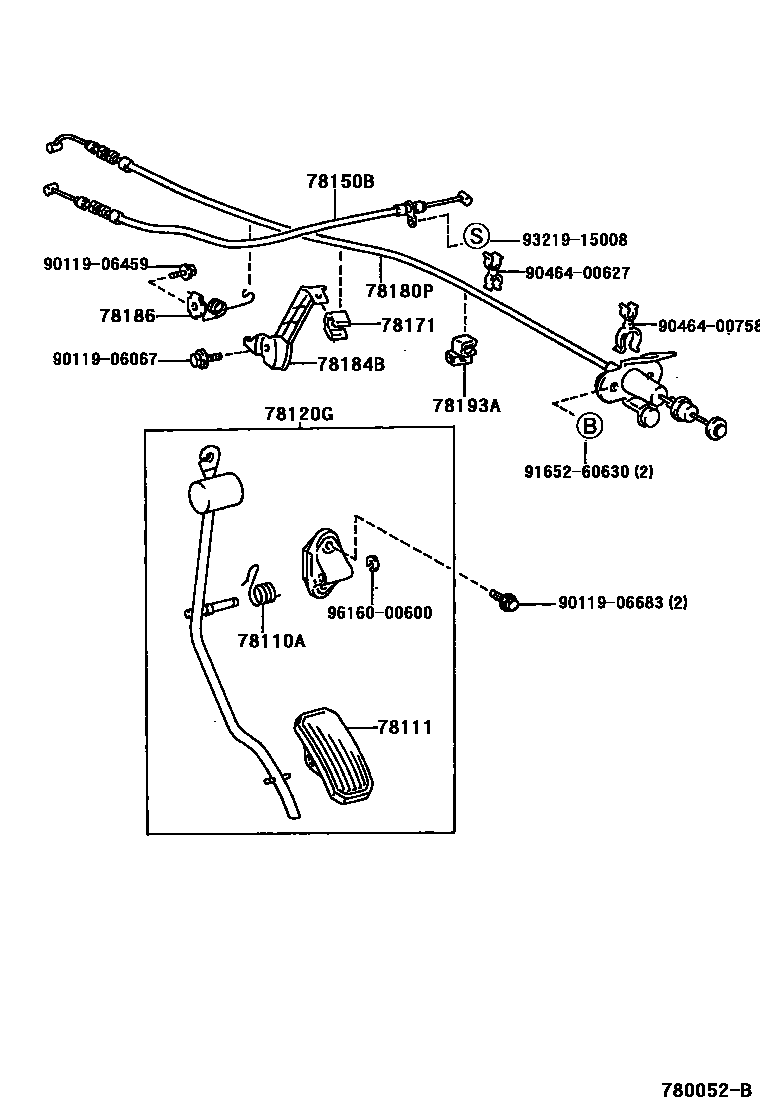

Parts diagram

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048i199608

78111PEDAL, ACCELERATOR

main78111-20060i199608-199702

main78111-33020i199702

78120GROD ASSY, ACCELERATOR PEDAL

main78120-33090i199608

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-33080i199608-199808

main78150-33100i199808

78171BRACKET, ACCELERATOR CONTROL NO.2 ROD, RH

main78171-33010i199608

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-33180i199608-199808

main78180-33230i199608-199808

main78180-33290i199808

main78180-33300i199808

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-41010i199608

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-33040i199608

main78186-33060i199608-199808

main78186-33090i199808

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-33010i199608

9011906067

main90119-06067

9011906459

main90119-06459

9011906683

main90119-06683

9046400627

main90464-00627

9046400758

main90464-00758

9165260630

main91652-60630

9321915008

main93219-15008

9616000600

main96160-00600

17 parts on this diagram · 1 diagram in section

ACCELERATOR LINK for Toyota WINDOM

This section contains 17 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota WINDOM. Key components include: SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, ROD ASSY, ACCELERATOR PEDAL, CABLE ASSY, ACCELERATOR AUTO DRIVE, BRACKET, ACCELERATOR CONTROL NO.2 ROD, RH.
