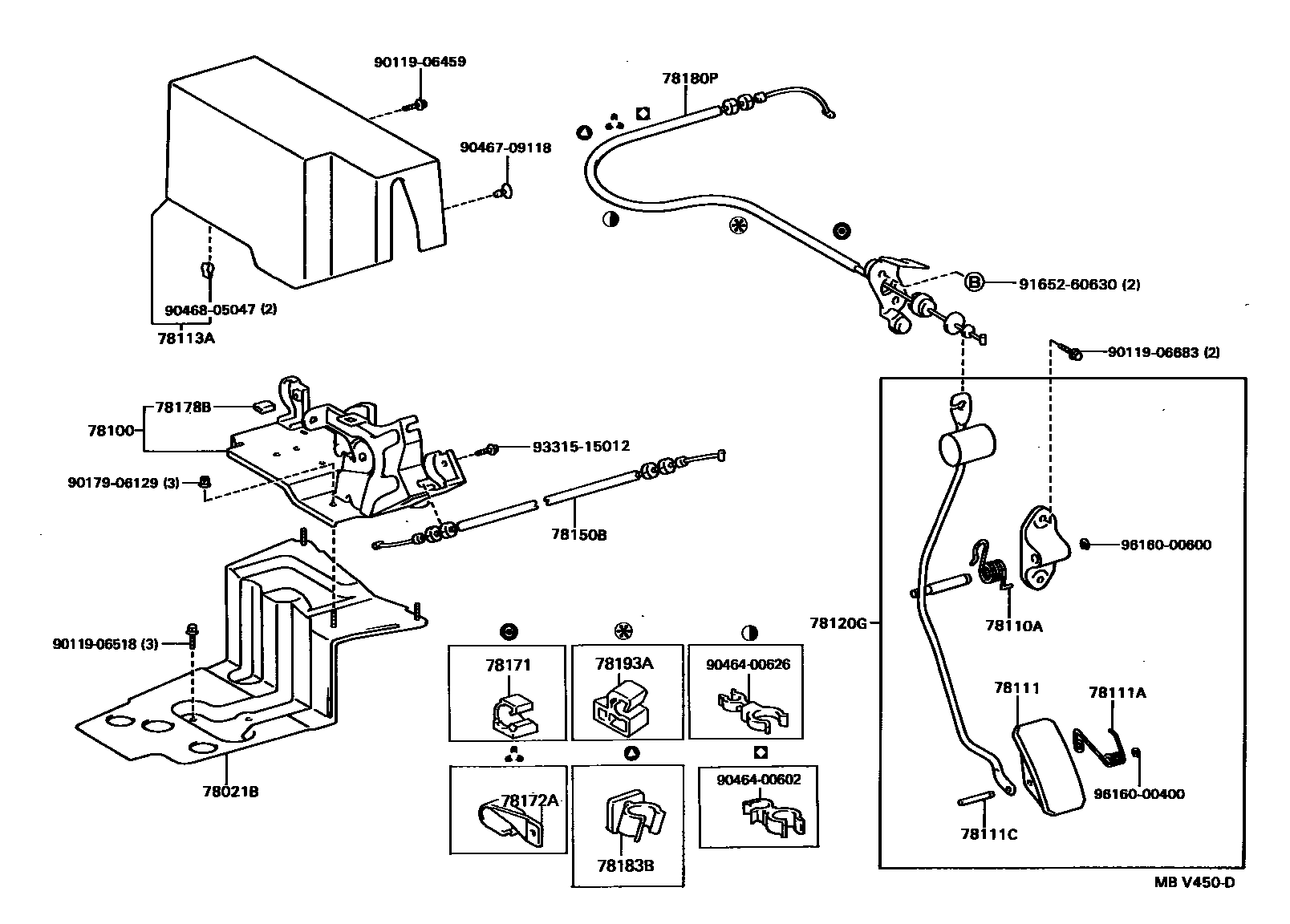

Toyota WINDOM — ACCELERATOR LINK

78021BBRACKET SUB-ASSY, ACCEL CONTROL BELLCRANK

main78021-33010iVCV10199110-199608

78100LINK ASSY, ACCELERATOR

main78100-33010iVCV10199110-199608

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048iVCV1#199110-199608

78111PEDAL, ACCELERATOR

main78111-12100iVCV1#199110-199608

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18046iVCV1#199110-199608

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iVCV1#199110-199608

78113ACOVER, AUTO DRIVE ACCELERATOR LINK

main78113-33010iVCV10199110-199608

78120GROD ASSY, ACCELERATOR PEDAL

main78120-33030iVCV1#199110-199608

78150BCABLE ASSY, ACCELERATOR AUTO DRIVE

main78150-33050iVCV10199110-199608

78171BRACKET, ACCELERATOR CONTROL NO.2 ROD, RH

main78171-33010iVCV1#199110-199608

78172ABRACKET, ACCELERATOR CONTROL NO.2 ROD, LH

main78172-33010iVCV10199110-199608

78178BDAMPER, ACCEL CONTROL NO.4 ROD BRACKET

main78178-14010iVCV10199110-199608

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-33010iVCV10199110-199608

main78180-33030iVCV1#199110-199608

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-33010iVCV10199110-199303

main78183-33011iVCV1#199303-199608

78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3

main78193-33010iVCV1#199110-199608

9011906459

main90119-06459

9011906518

main90119-06518

9011906683

main90119-06683

9017906129

main90179-06129

9046400602

main90464-00602

9046400626

main90464-00626

9046709118

main90467-09118

9046805047

main90468-05047

9165260630

main91652-60630

9331515012

main93315-15012

9616000400

main96160-00400

9616000600

main96160-00600

27 parts on this diagram · 1 diagram in section
