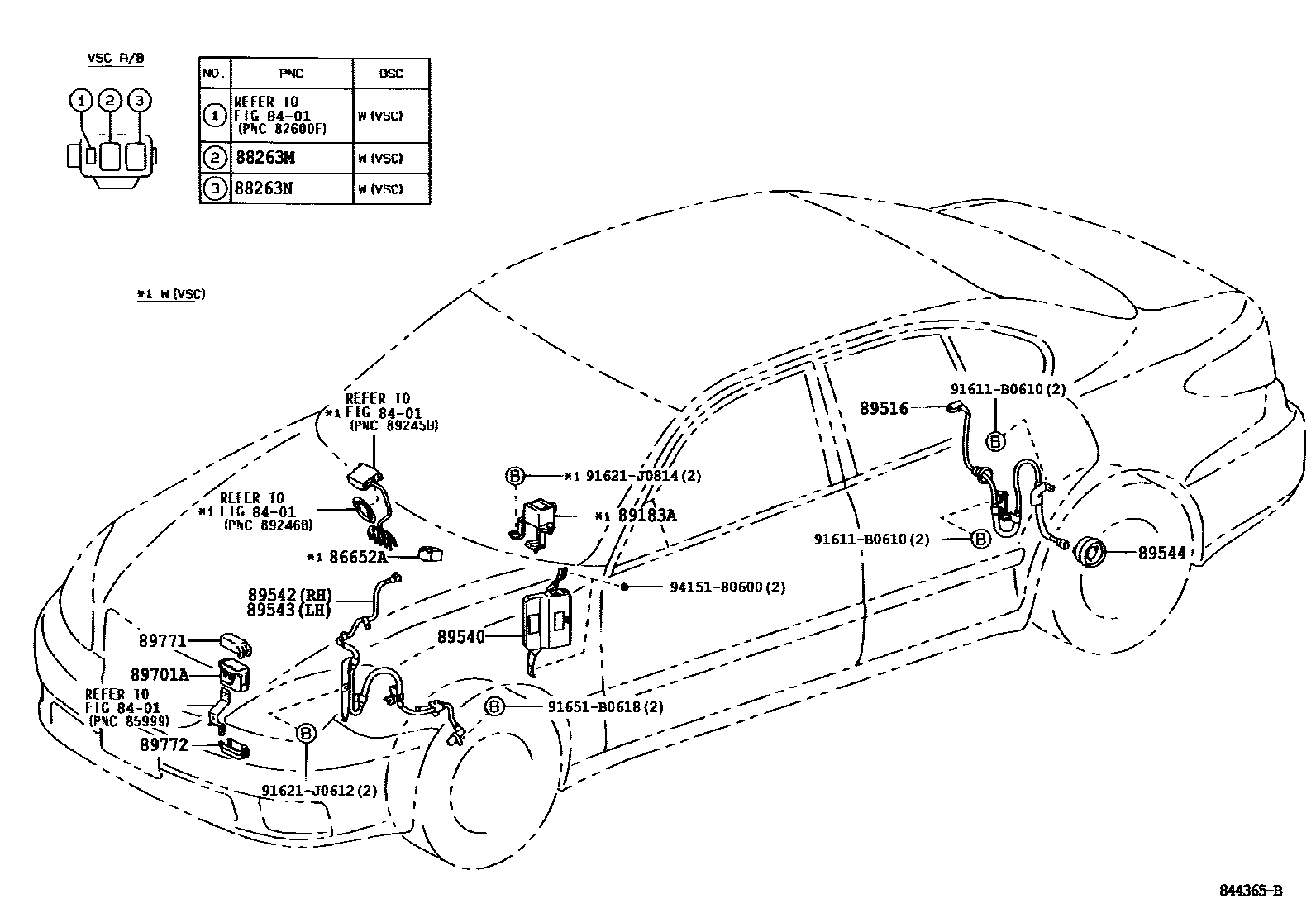

Toyota WINDOM — ABS & VSC

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86650-33050i200204-200406

88263MRELAY, ABS SOLENOID

main88263-32070i200107-200406

88263NRELAY, ABS MOTOR

main88263-32070i200107-200406

89183ASENSOR, YAWRATE

main89180-33020i200107-200204

89516WIRE, SKID CONTROL SENSOR

main89516-33010i200107-200406

main89516-33020i200107-200406

89540COMPUTER ASSY, SKID CONTROL

main89540-33320i200107-200109

main89540-33321i200204-200406

main89540-33330i200107-200406

89542SENSOR, SPEED, FRONT RH

main89542-33070i200107-200406

89543SENSOR, SPEED, FRONT LH

main89543-33070i200107-200406

89544SENSOR, SKID CONTROL

main89544-48010×4i200107-200406

89701ABLOCK SUB-ASSY, ABS RELAY

main89701-12020i200107-200406

89771COVER, ABS RELAY BLOCK, UPPER

main89771-33010i200107-200406

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12020i200107-200406

91611B0610

main91611-B0610

91621J0612

main91621-J0612

91621J0814

main91621-J0814

91651B0618

main91651-B0618

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota WINDOM

This section contains 18 genuine Toyota parts for the ABS & VSC system of the Toyota WINDOM. Key components include: SWITCH & RELAY & COMPUTER, BUZZER ASSY, SKID CONTROL, RELAY, ABS SOLENOID, RELAY, ABS MOTOR, SENSOR, YAWRATE.
