Toyota WINDOM — ABS & VSC
88263ARELAY, SKID CONTROL
88267BRACKET, SKID CONTROL COMPUTER, NO.1
88268BRACKET, SKID CONTROL COMPUTER, NO.2
89411SENSOR, SPEED
FRONT RH
FRONT,LH
REAR RH
REAR,LH
89540COMPUTER ASSY, SKID CONTROL
9011906423
main90119-06423
9011906512
main90119-06512
9017906070
main90179-06070
9038916020
main90389-16020
91611B0610
main91611-B0610
91612B0610
main91612-B0610
9165140612
main91651-40612
91651B0614
main91651-B0614
91656B0616
main91656-B0616
9325954010
main93259-54010
9326954010
main93269-54010

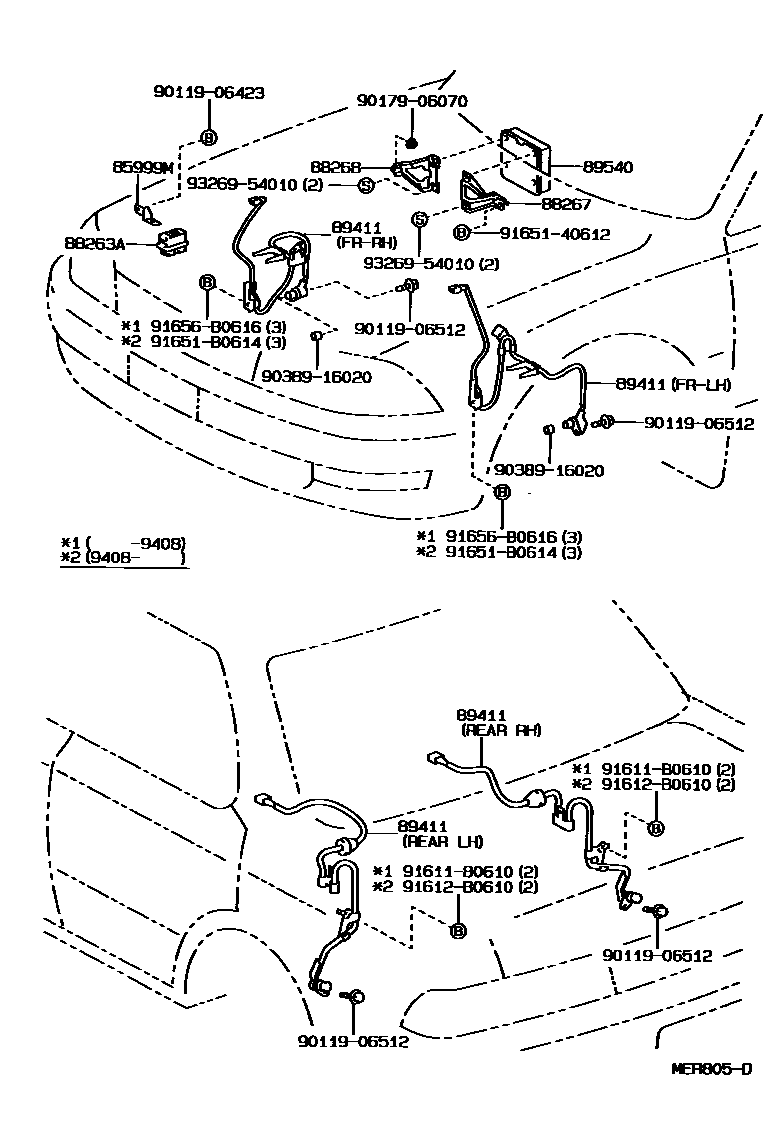

17 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota WINDOM
This section contains 17 genuine Toyota parts for the ABS & VSC system of the Toyota WINDOM. Key components include: BRACKET, RELAY, RELAY, SKID CONTROL, BRACKET, SKID CONTROL COMPUTER, NO.1, BRACKET, SKID CONTROL COMPUTER, NO.2, SENSOR, SPEED.
