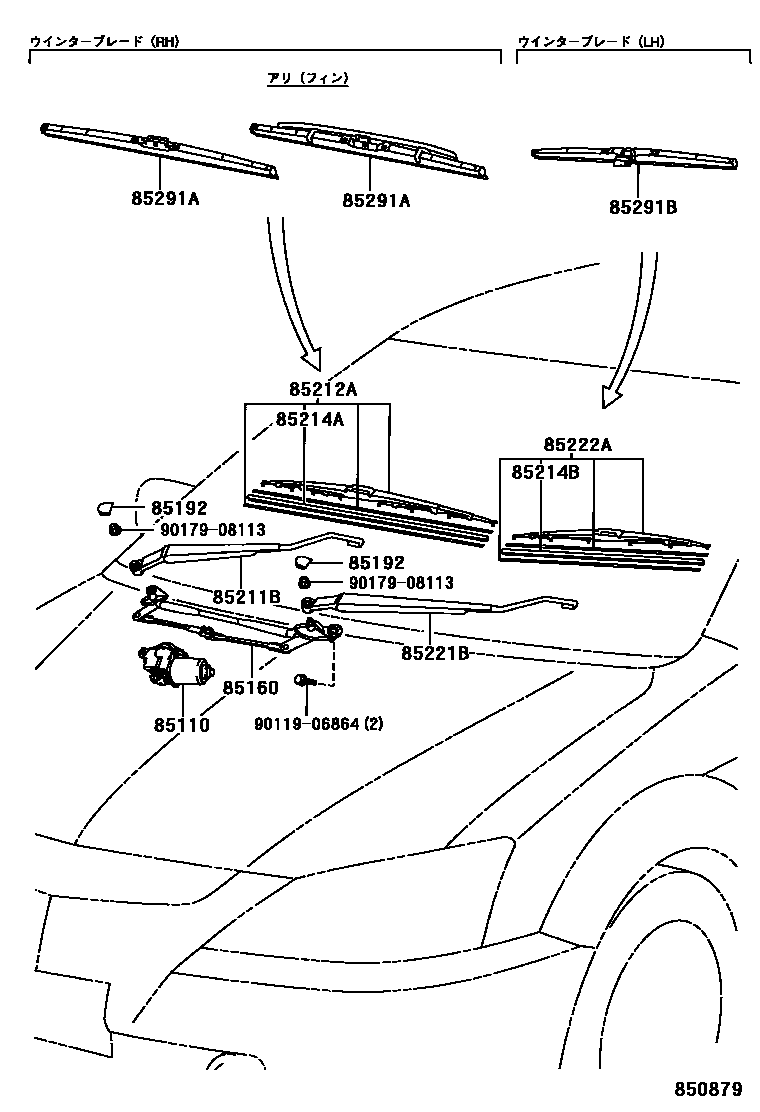

Toyota WILL VS — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-1A050iNZE127,ZZE12#200104

main85110-1A070iNZE127,ZZE12#200104

85160LINK ASSY, WINDSHIELD WIPER

main85150-1A040iNZE127,ZZE12#200104

85192COVER, WINDSHIELD WIPER ARM

main85292-12020×2iNZE127,ZZE12#200104

85211BARM, FRONT WIPER, RH

main85211-12430iNZE127,ZZE12#200104

85212ABLADE, FR WIPER, RH

main85212-12380iNZE127,ZZE12#200104

sub85212-60151

85214ARUBBER, WIPER, RH

main85214-50100iNZE127,ZZE12#200104

85214BRUBBER, WIPER, LH

main85214-50130iNZE127,ZZE12#200104

sub85214-50060

85221BARM, FRONT WIPER, LH

main85221-12340iNZE127,ZZE12#200104

85222ABLADE, FR WIPER, LH

main85222-12790iNZE127,ZZE12#200104

sub85222-12760

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-13040iNZE127,ZZE12#200104

sub85291-24100

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-41020iNZE127,ZZE12#200104

sub85291-44080

9011906864

main90119-06864

9017908113

main90179-08113

13 parts on this diagram · 1 diagram in section
