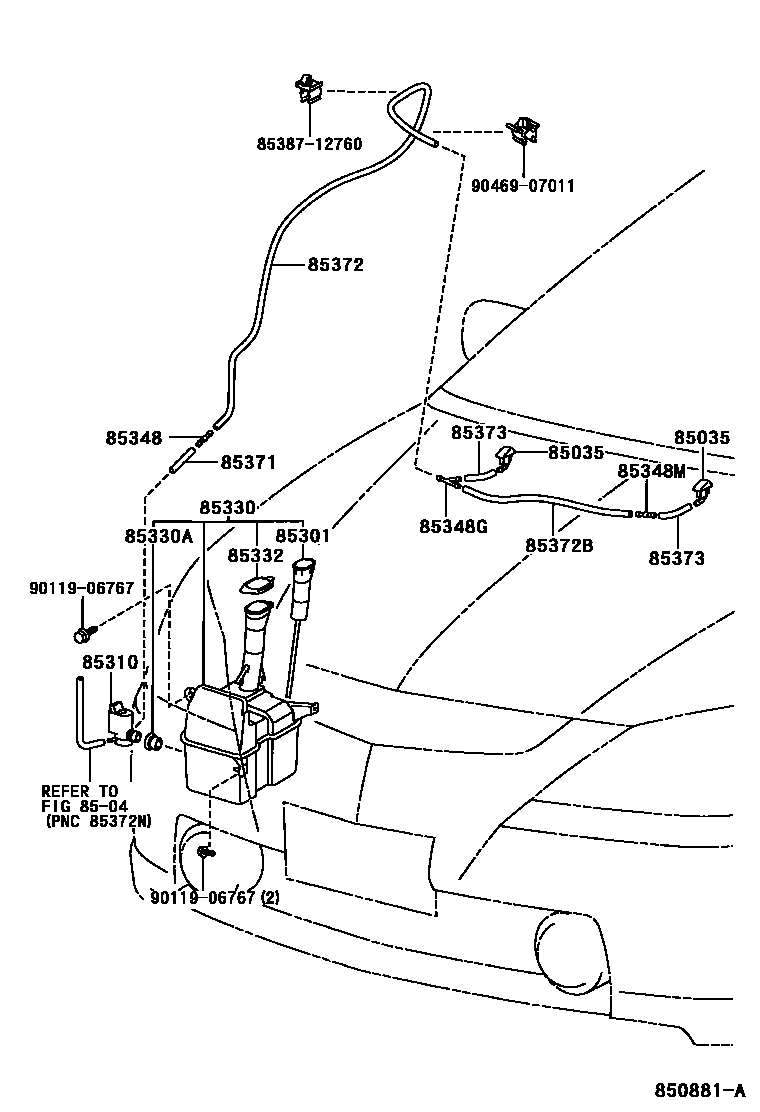

Toyota WILL VS — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-12230×2iNZE127,ZZE12#200104

sub85381-44010

8504

85301INLET SUB-ASSY, WASHER

main85318-12450iNZE127,ZZE12#200104

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10290iNZE127,ZZE12#200104

85330JAR ASSY, WINDSHIELD WASHER

main85315-12450iNZE127,ZZE12#200104

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNZE127,ZZE12#200104

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iNZE127,ZZE12#200104

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNZE127,ZZE12#200104

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14390iNZE127,ZZE12#200104

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iNZE127,ZZE12#200104

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNZE127,ZZE12#200104

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iNZE127,ZZE12#200104

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iNZE127,ZZE12#200104

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iNZE127,ZZE12#200104

8538712760CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-12760

9011906767

main90119-06767

9046907011

main90469-07011

17 parts on this diagram · 1 diagram in section
