Toyota WILL VS — TRANSFER GEAR
3609TRANSFER CASE & EXTENSION HOUSING
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
41201KBEARING (FOR TRANSFER DRIVEN PINION FRONT)
41201LBEARING (FOR TRANSFER DRIVEN PINION REAR)
41201PGEAR KIT, TRANSFER
41201QNUT (FOR TRANSFER GEAR)
41222CBOLT (FOR TRANSFER RING GEAR)
41231BSPACER, TRANSFER PINION BEARING
41301HBEARING(FOR RING GEAR MOUNTING CASE)
41301JWASHER, PLATE(FOR RING GEAR MOUNTING CASE)
41301XWASHER, TRANSFER RING GEAR MOUNTING CASE, NO.2
41319CASE, TRANSFER RING GEAR MOUNTING
12 parts on this diagram · 1 diagram in section

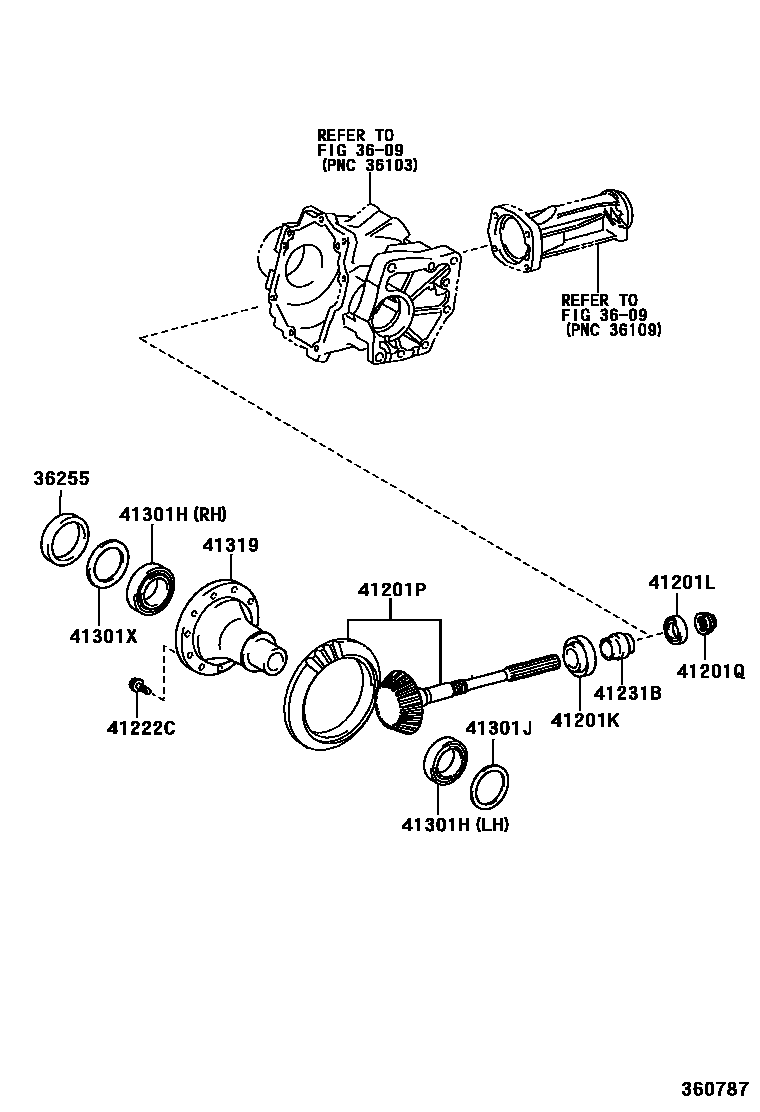

TRANSFER GEAR for Toyota WILL VS
This section contains 12 genuine Toyota parts for the TRANSFER GEAR system of the Toyota WILL VS. Key components include: TRANSFER CASE & EXTENSION HOUSING, SPACER, TRANSFER OUTPUT SHAFT, NO.1, BEARING (FOR TRANSFER DRIVEN PINION FRONT), BEARING (FOR TRANSFER DRIVEN PINION REAR), GEAR KIT, TRANSFER.
