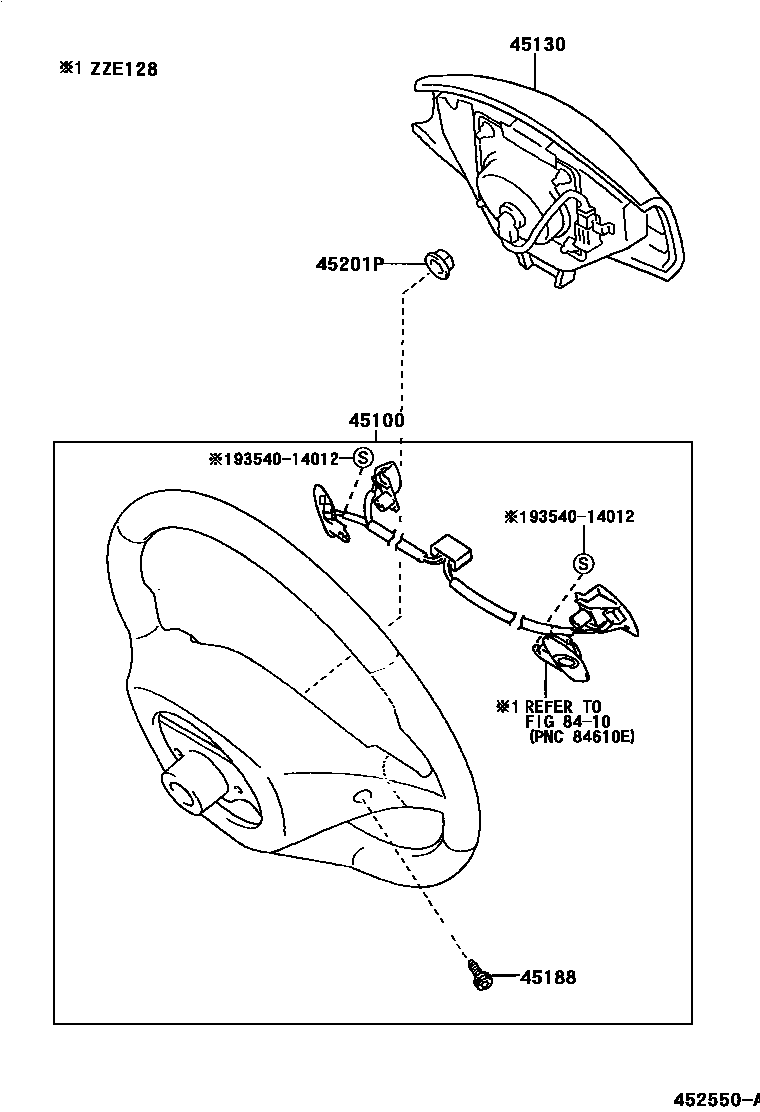

Toyota WILL VS — STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-1A080-C0i200104-200404

main45100-1A090-C0i200104-200404

main45100-1A100-C0i200201-200404

45130BUTTON ASSY, HORN

main45130-1A230-C0i200202-200204

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2i200104-200404

45201PNUT, STEERING WHEEL SET

main90179-12071i200104-200404

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9354014012

main93540-14012

6 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota WILL VS

This section contains 6 genuine Toyota parts for the STEERING WHEEL system of the Toyota WILL VS. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, SCREW, STEERING WHEEL PAD ATTACHING, NUT, STEERING WHEEL SET, OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION.
