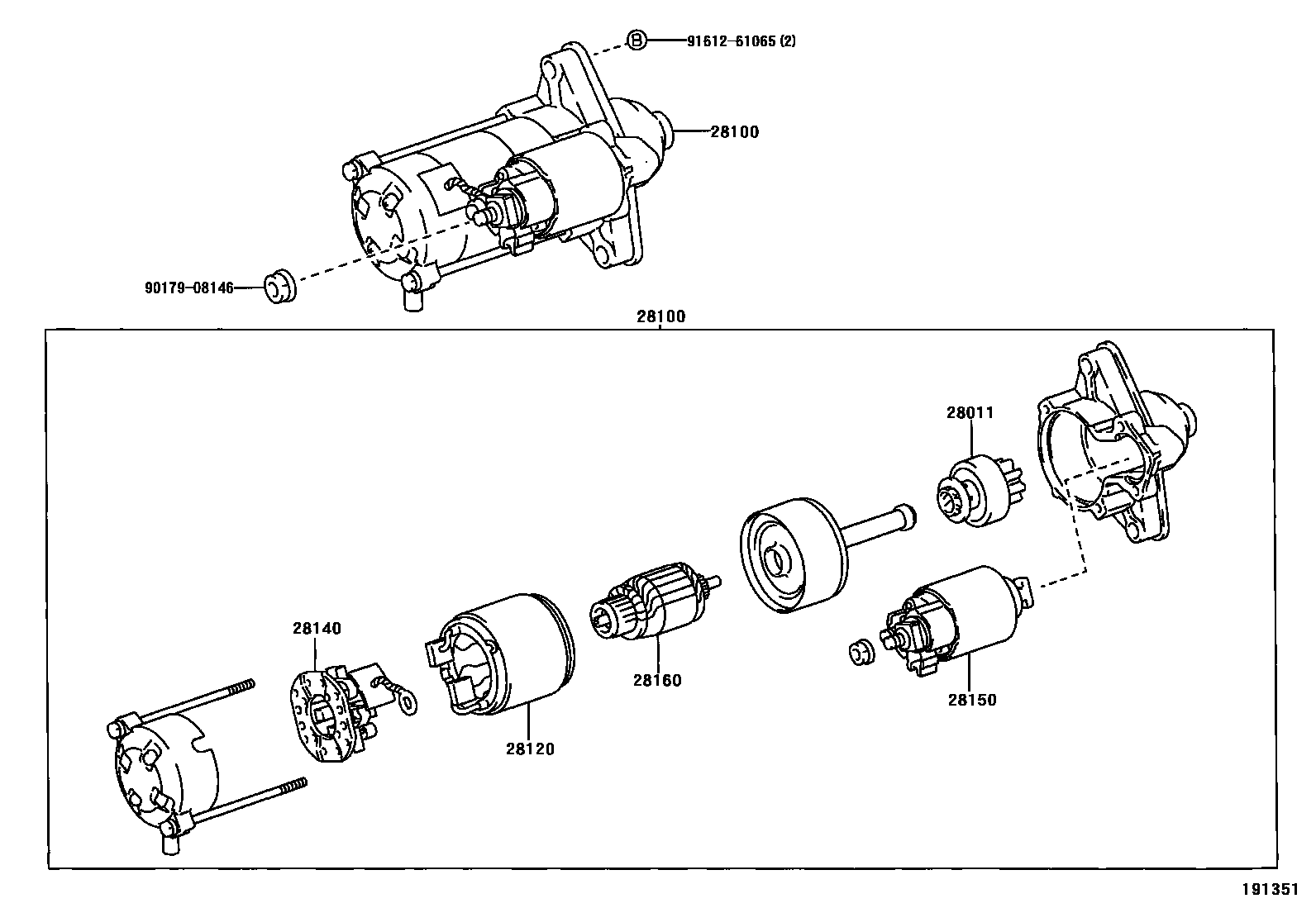

Toyota WILL VS — STARTER

0001 112V 0.8,1.0KW 0002 112V 0.8KW 0003 112V 1.0KW 0004 112V 0.8KW,1.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-21050i1NZFE..NZE127200201-200208

12V 0.8KW

main28011-70020i1NZFE..NZE127200201-200208

12V 1.0KW

28100STARTER ASSY

main28100-21020i1NZFE..NZE127200208

sub28100-21021

main28100-21030i1NZFE..NZE127200201

sub28100-21031

main28100-21050i1NZFE..NZE127200201-200208

main28100-22030i1ZZFE,2ZZGE..ZZE12#200104

sub28100-22031

main28100-22040i1ZZFE,2ZZGE..ZZE12#200104

sub28100-22041

28120YOKE ASSY, STARTER

main28120-23020i1NZFE..NZE127200201-200208

12V 0.8KW

main28120-70020i1ZZFE,2ZZGE..ZZE12#200104

12V 0.8KW

main28120-70050i1NZFE,1ZZFE,2ZZGE..NZE127,ZZE12#200104

12V 1.0KW

28140HOLDER ASSY, STARTER BRUSH

main28140-70020i1NZFE,1ZZFE,2ZZGE..NZE127,ZZE12#200104

28150SWITCH ASSY, MAGNET STARTER

main28150-16160i1NZFE..NZE127200201

main28150-70030i1ZZFE,2ZZGE..ZZE12#200104

sub28150-22100

28160ARMATURE ASSY, STARTER

main28160-21050i1NZFE..NZE127200201-200208

12V 0.8KW

main28160-70021i1ZZFE,2ZZGE..ZZE12#200104

12V 0.8KW

main28160-70050i1NZFE,1ZZFE,2ZZGE..NZE127,ZZE12#200104

12V 1.0KW

9017908146

main90179-08146

9161261065

main91612-61065

8 parts on this diagram · 4 diagrams in section
