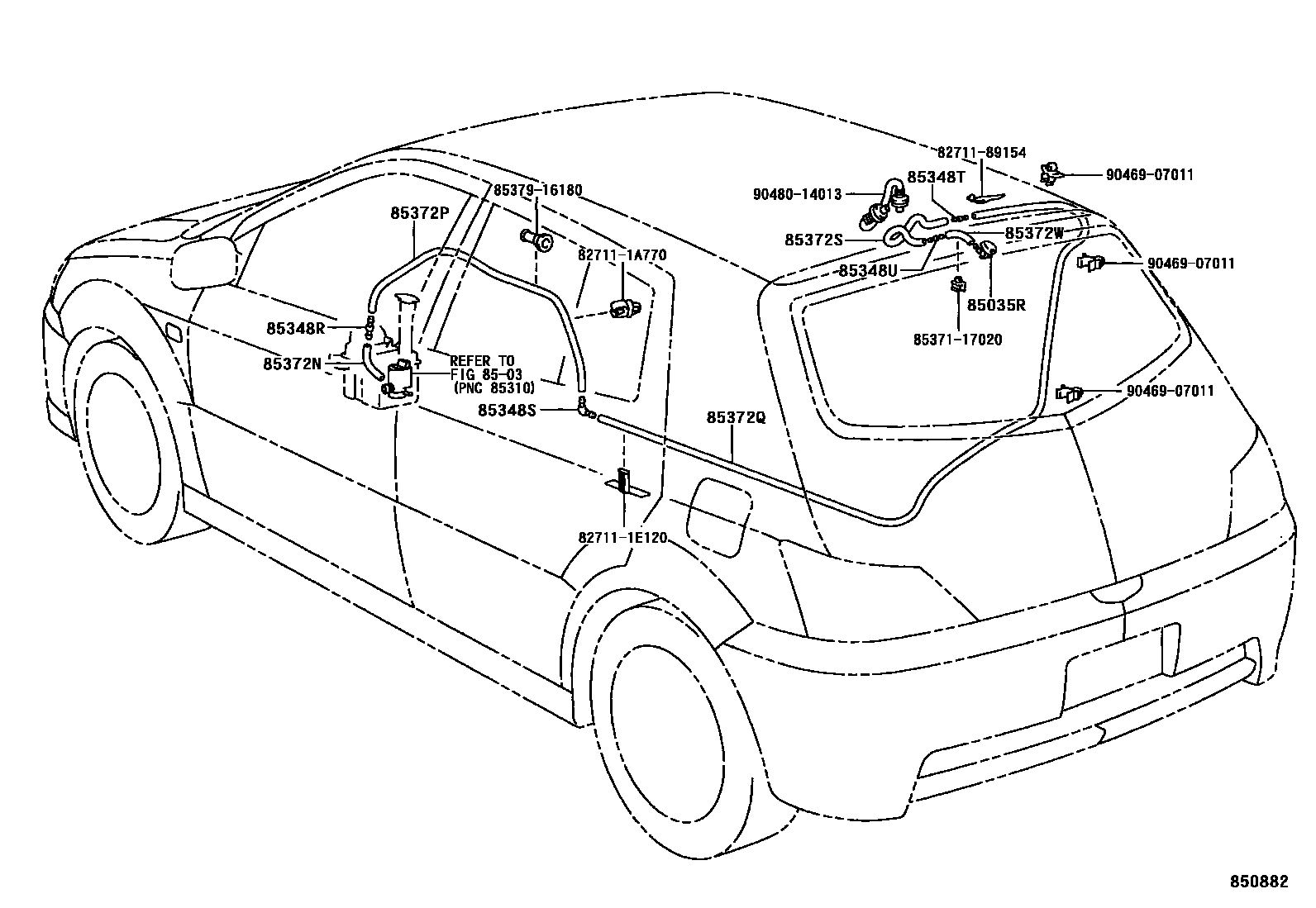

Toyota WILL VS — REAR WASHER
8503WINDSHIELD WASHER
85035RNOZZLE SUB-ASSY, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A770
827111E120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E120
8271189154WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-89154
8537117020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-17020
8537916180JOINT
main85379-16180
9046907011
main90469-07011
9048014013
main90480-14013
18 parts on this diagram · 1 diagram in section
REAR WASHER for Toyota WILL VS
This section contains 18 genuine Toyota parts for the REAR WASHER system of the Toyota WILL VS. Key components include: WINDSHIELD WASHER, NOZZLE SUB-ASSY, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER ELBOW, NO.1, JOINT, REAR WASHER HOSE, NO.2.
