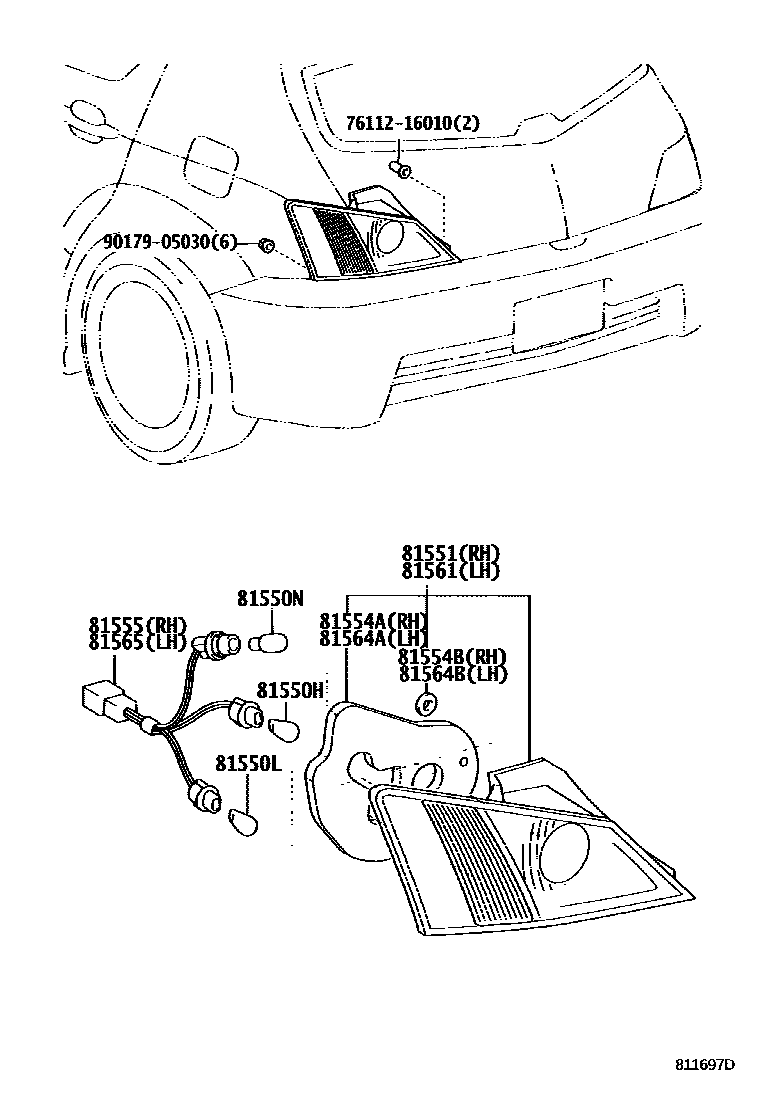

Toyota WILL VS — REAR COMBINATION LAMP

81550HBULB, TAIL & STOP LAMP

main90981-13044×2i200104-200404

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15011×2i200104-200404

81550NBULB, BACK UP LAMP

main90981-11059×2i200104-200404

81551LENS, REAR COMBINATION LAMP, RH

main81551-1E230i200104-200404

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81554-1E230i200104-200404

81554BGASKET, REAR COMBINATION LAMP BODY, NO.2 RH

main81554-32150i200104-200404

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-1E230i200104-200404

81561LENS, REAR COMBINATION LAMP, LH

main81561-1E190i200104-200404

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81554-1E230i200104-200404

81564BGASKET, REAR COMBINATION LAMP BODY, NO.2 LH

main81554-32150i200104-200404

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-1E230i200104-200404

7611216010

main76112-16010

9017905030

main90179-05030

13 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota WILL VS

This section contains 13 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota WILL VS. Key components include: BULB, TAIL & STOP LAMP, BULB, REAR TURN SIGNAL LAMP, BULB, BACK UP LAMP, LENS, REAR COMBINATION LAMP, RH, GASKET, REAR COMBINATION LAMP BODY, NO.1 RH.
