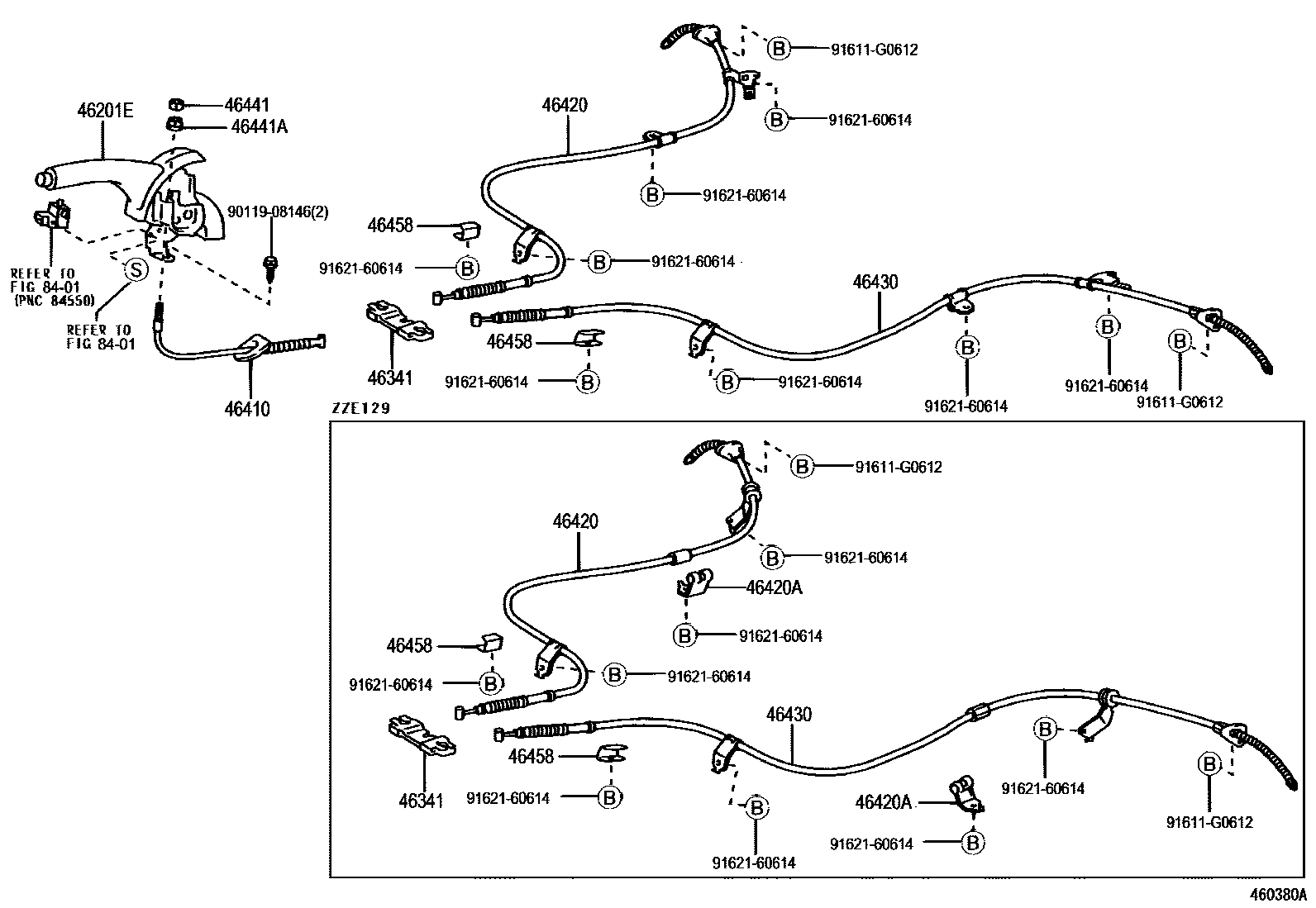

Toyota WILL VS — PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12270-C0i200104-200404

BLACK,TRIM2#

main46201-12280-C0i200206-200207

46341EQUALIZER, PARKING BRAKE

main46341-20070i200104-200404

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-12270i200104-200404

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-12490i200104-200404

main46420-12510i200201-200404

main46420-12521i200104-200404

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01C31×2i200104-200404

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-12400i200104-200404

main46430-12410i200201-200404

main46430-12421i200104-200404

46441NUT, WIRE ADJUSTING, NO.1

main90179-06299i200104-200404

46441ANUT, WIRE ADJUSTING, NO.2

main46441-12010i200107-200404

main90179-06164i200104-200107

46458RETAINER, CABLE

main46458-28010×2i200104-200404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908146

main90119-08146

91611G0612

main91611-G0612

9162160614

main91621-60614

13 parts on this diagram · 2 diagrams in section

PARKING BRAKE & CABLE for Toyota WILL VS

This section contains 30 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota WILL VS. Key components include: LEVER SUB-ASSY, PARKING BRAKE, EQUALIZER, PARKING BRAKE, CABLE ASSY, PARKING BRAKE, NO.1, CABLE ASSY, PARKING BRAKE, NO.2, CLAMP, NO.1(FOR PARKING BRAKE CABLE).
