Toyota WILL VSMETER

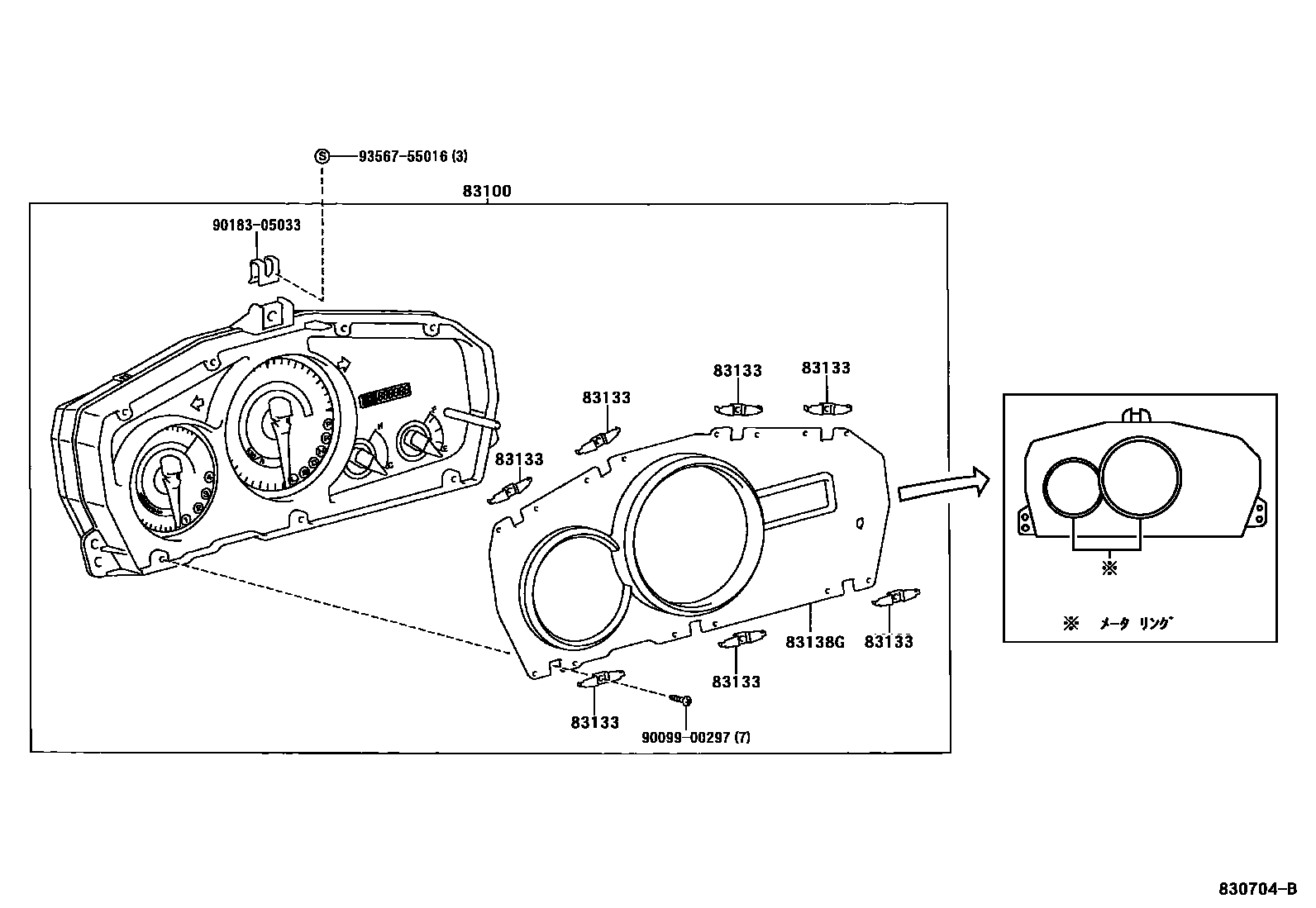

Parts diagram
83100METER ASSY, COMBINATION
main83800-1H270i200104
main83800-1H280i200104
main83800-1H460i200201
main83800-1H490i200201
main83800-1H500i200201
83133PLATE, COMBINATION METER, NO.1
main83133-24290i200104
83138GGLASS, COMBINATION METER
main83852-1H270i200104
main83852-1H490i200201
9009900297
9018305033
9356755016

6 parts on this diagram · 1 diagram in section

METER for Toyota WILL VS

This section contains 6 genuine Toyota parts for the METER system of the Toyota WILL VS. Key components include: METER ASSY, COMBINATION, PLATE, COMBINATION METER, NO.1, GLASS, COMBINATION METER.
