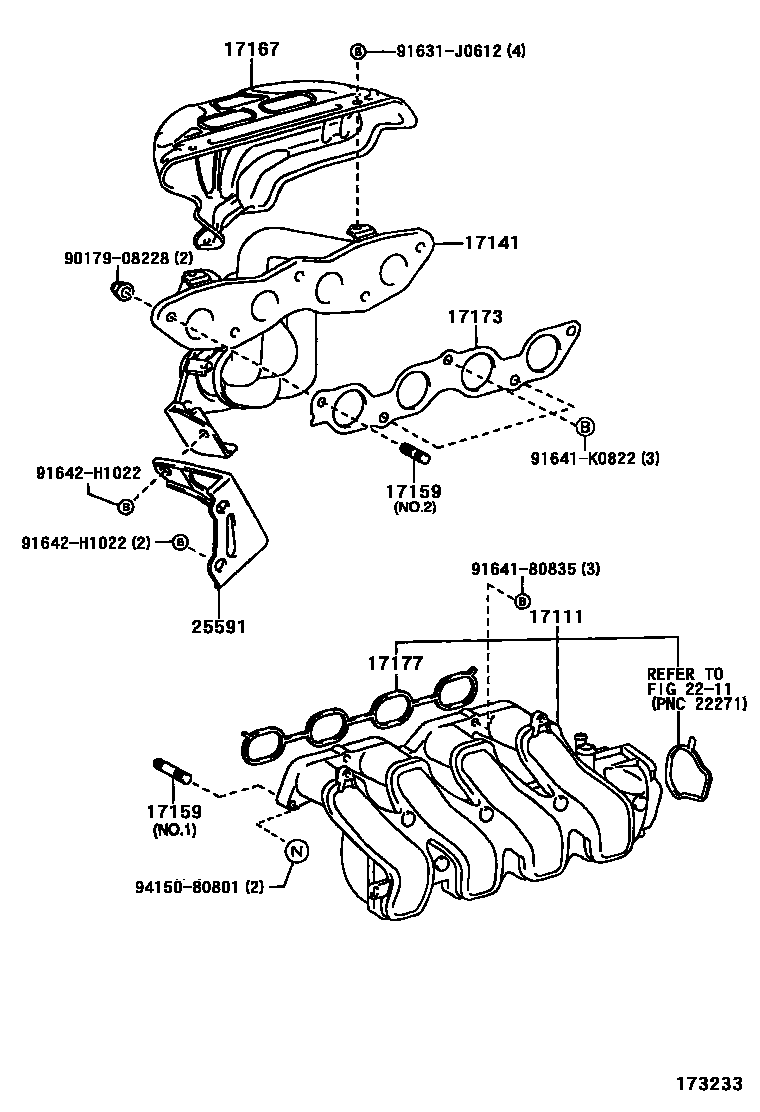

Toyota WILL VS — MANIFOLD
17111MANIFOLD, INTAKE
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211FUEL INJECTION SYSTEM
25591BRACKET, MANIFOLD SUPPORT
9017908228
main90179-08228
91631J0612
main91631-J0612
9164180835
main91641-80835
91641K0822
main91641-K0822
91642H1022
main91642-H1022
9415080801
main94150-80801
14 parts on this diagram · 5 diagrams in section
MANIFOLD for Toyota WILL VS
This section contains 45 genuine Toyota parts for the MANIFOLD system of the Toyota WILL VS. Key components include: MANIFOLD, INTAKE, STAY, MANIFOLD, STAY, MANIFOLD, NO.2, STAY, SURGE TANK, NO.1, TANK, INTAKE AIR SURGE.
