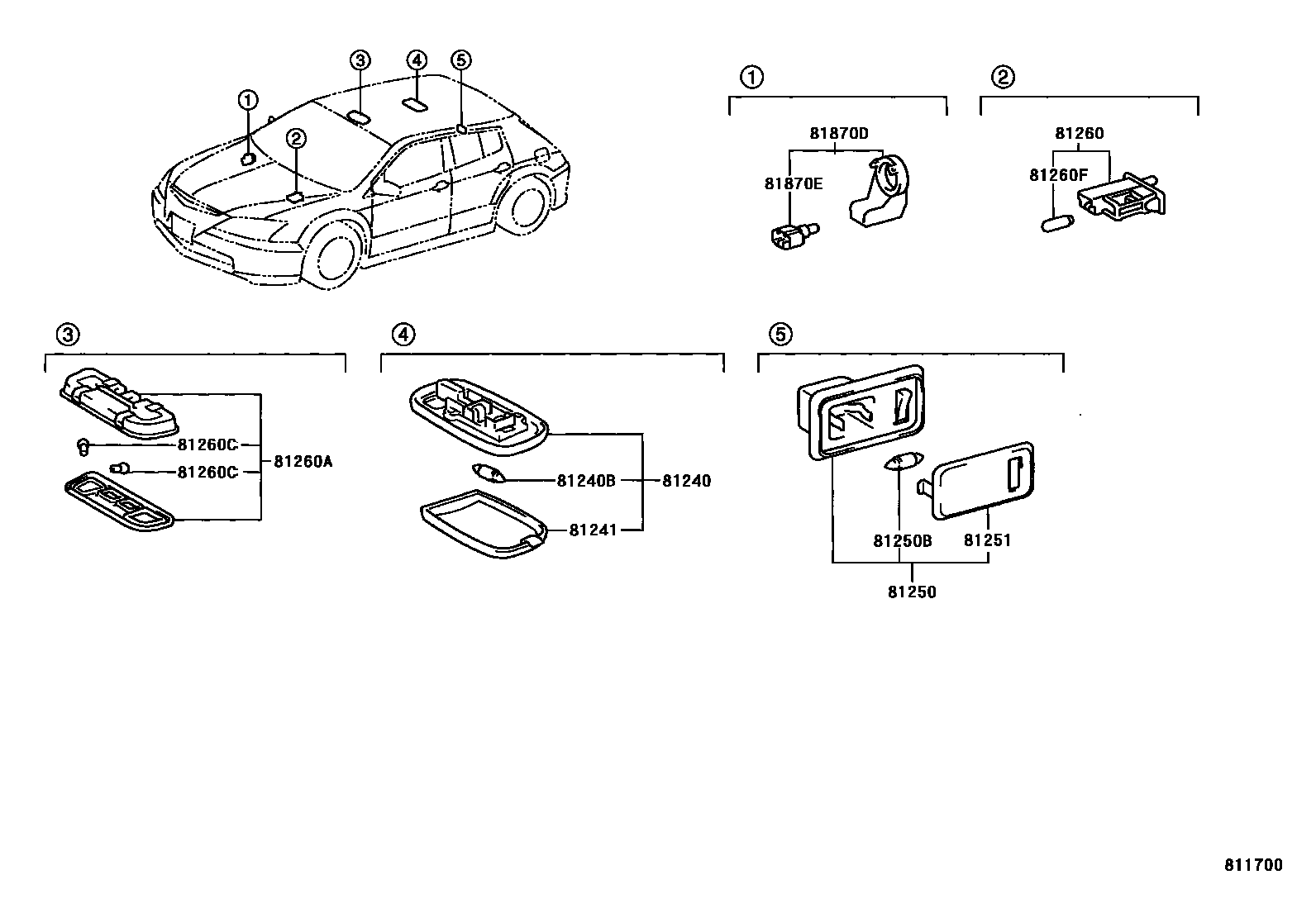

Toyota WILL VS — INTERIOR LAMP
81240LAMP ASSY, ROOM, NO.1
81240BBULB, ROOM LAMP, NO.1
81241LENS, ROOM LAMP, NO.1
81250LAMP ASSY, ROOM, NO.2
81250BBULB, ROOM LAMP, NO.2
81251LENS, ROOM LAMP, NO.2
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
81260CBULB(FOR MAP LAMP)
81260FBULB(FOR GLOVE BOX LAMP)
81870DLAMP ASSY, KEY CYLINDER
81870EBULB, KEY CYLINDER LAMP
12 parts on this diagram · 1 diagram in section
INTERIOR LAMP for Toyota WILL VS
This section contains 12 genuine Toyota parts for the INTERIOR LAMP system of the Toyota WILL VS. Key components include: LAMP ASSY, ROOM, NO.1, BULB, ROOM LAMP, NO.1, LENS, ROOM LAMP, NO.1, LAMP ASSY, ROOM, NO.2, BULB, ROOM LAMP, NO.2.
