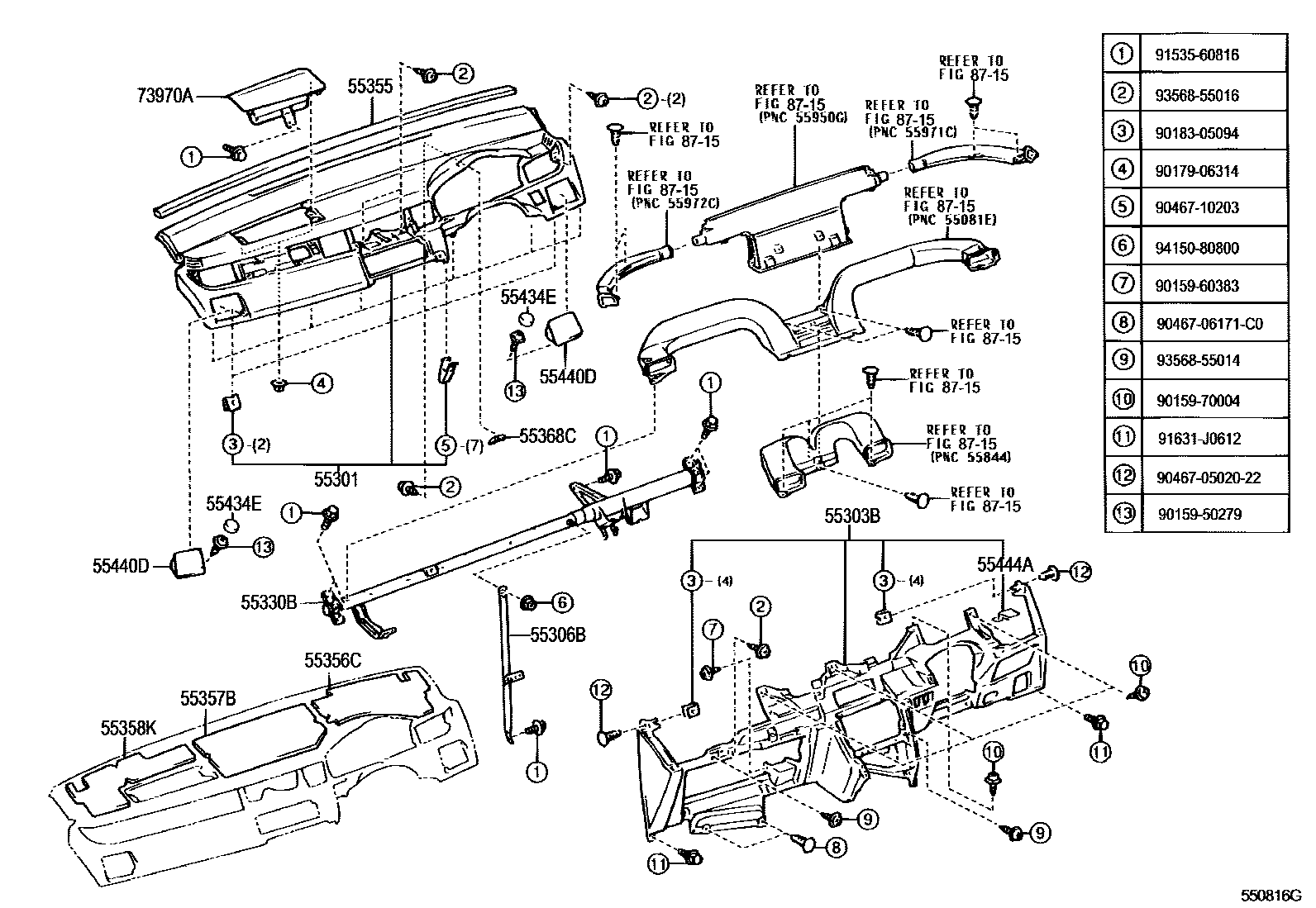

Toyota WILL VS — INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55357BCUSHION, INSTRUMENT PANEL, NO.3
55358KCUSHION, INSTRUMENT PANEL, NO.4
55368CBRACKET, METER MOUNTING
55434ECAP
BLACK,TRIM2#
55440DBOX ASSY, INSTRUMENT PANEL
55444ASPRING, INSTRUMENT PANEL BOX
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
9015950279
main90159-50279
9015960383
main90159-60383
9015970004
main90159-70004
9017906314
main90179-06314
9018305094
main90183-05094
904670502022
main90467-0502022
9046706171C0
main90467-06171C0
9046710203
main90467-10203
9153560816
main91535-60816
91631J0612
main91631-J0612
9356855014
main93568-55014
9356855016
main93568-55016
9415080800
main94150-80800
27 parts on this diagram · 2 diagrams in section
INSTRUMENT PANEL & GLOVE COMPARTMENT for Toyota WILL VS
This section contains 49 genuine Toyota parts for the INSTRUMENT PANEL & GLOVE COMPARTMENT system of the Toyota WILL VS. Key components include: STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR, REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1, REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2, REGISTER SUB-ASSY, INSTRUMENT, NO.3, REGISTER SUB-ASSY, INSTRUMENT, NO.4.
