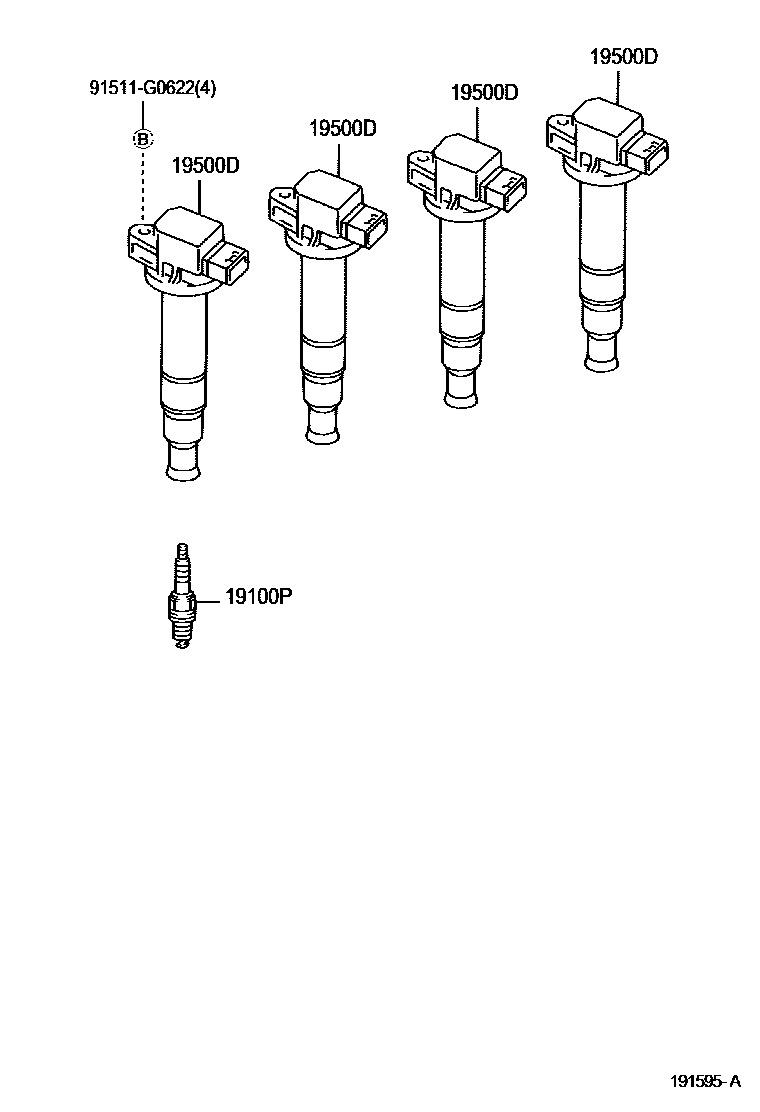

Toyota WILL VS — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01164×4i200104-200403

main90919-01210×4i200104-200301

main90919-01211×4i200104-200301

main90919-01237×4i200301-200403

19500COIL ASSY, IGNITION

main90919-02238×4i200104-200403

main90919-02239×4i200104-200403

19500DCOIL, IGNITION, NO.1

main90919-02240×4i200201-200403

91511G0622

main91511-G0622

4 parts on this diagram · 3 diagrams in section

IGNITION COIL & SPARK PLUG / GLOW PLUG for Toyota WILL VS

This section contains 7 genuine Toyota parts for the IGNITION COIL & SPARK PLUG / GLOW PLUG system of the Toyota WILL VS. Key components include: PLUG, SPARK, COIL ASSY, IGNITION, COIL, IGNITION, NO.1.
