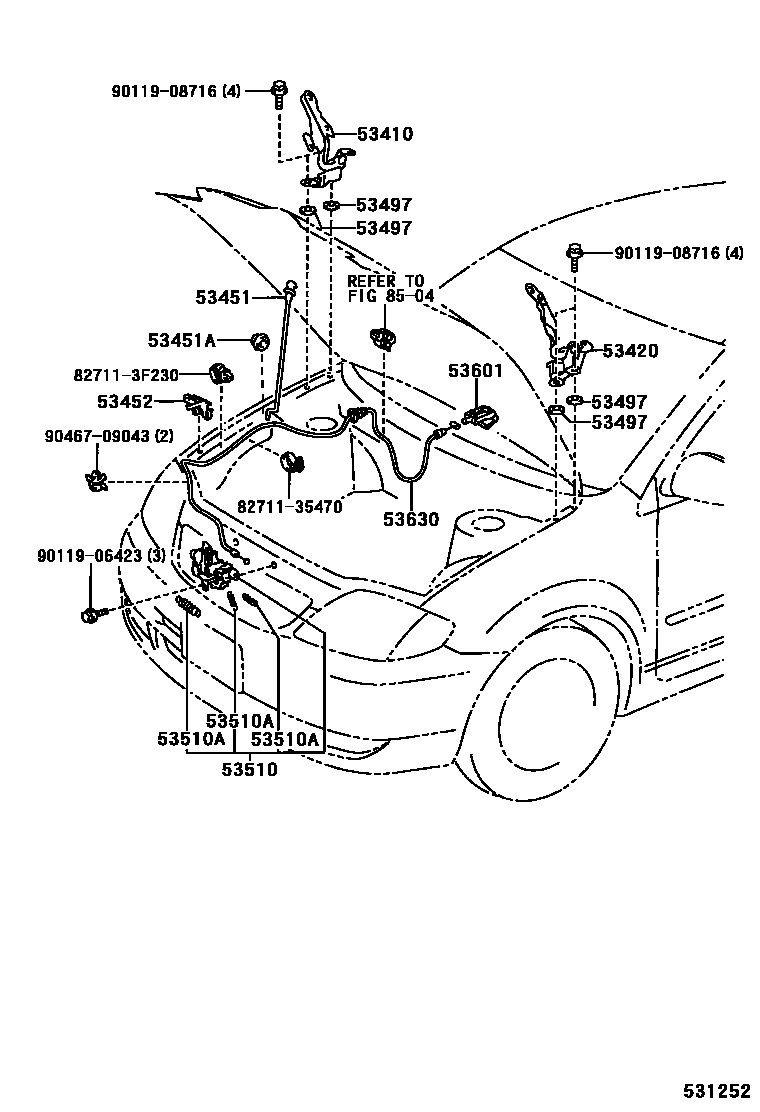

Toyota WILL VS — HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53451AGROMMET(FOR HOOD SUPPORT ROD)
53452HOLDER, HOOD STAY
53497PAD, HOOD HINGE, NO.1
53510LOCK ASSY, HOOD
53510ASPRING, TENSION(FOR HOOD LOCK)
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
53630CABLE ASSY, HOOD LOCK CONTROL
8504REAR WASHER
8271135470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-35470
827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-3F230
9011906423
main90119-06423
9011908716
main90119-08716
9046709043
main90467-09043
16 parts on this diagram · 1 diagram in section
HOOD LOCK & HINGE for Toyota WILL VS
This section contains 16 genuine Toyota parts for the HOOD LOCK & HINGE system of the Toyota WILL VS. Key components include: HINGE ASSY, HOOD, RH, HINGE ASSY, HOOD, LH, ROD, HOOD SUPPORT, GROMMET(FOR HOOD SUPPORT ROD), HOLDER, HOOD STAY.
