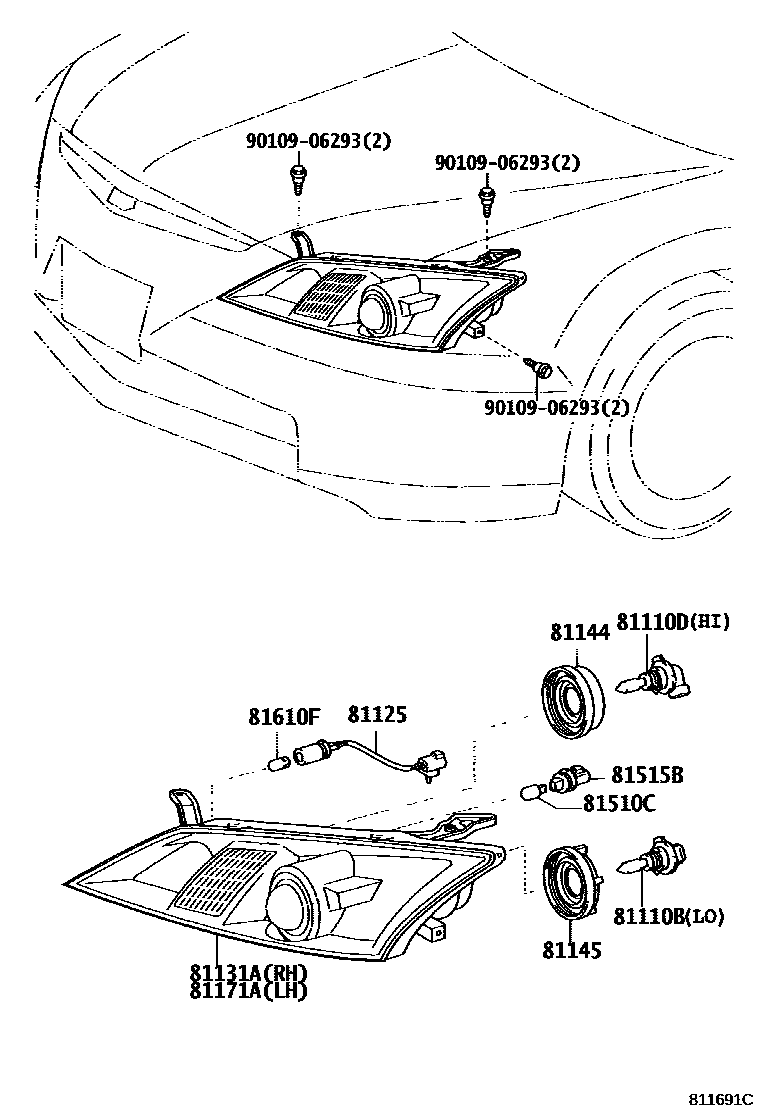

Toyota WILL VS — HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81040×2i200104-200301

main90981-13047×2i200301

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13046×2i200104

81125CORD, HEADLAMP

main81125-1E620×2i200104

81131AUNIT, HEADLAMP, RH

main81130-1E650i200104

81144COVER, HEADLAMP, NO.1

main90075-65006×2i200104

81145COVER, HEADLAMP, NO.2

main90075-99062×2i200104

81171AUNIT, HEADLAMP, LH

main81170-1E520i200104

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043×2i200104

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90075-99080×2i200104

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2i200104

9010906293

main90109-06293

11 parts on this diagram · 1 diagram in section

HEADLAMP for Toyota WILL VS

This section contains 11 genuine Toyota parts for the HEADLAMP system of the Toyota WILL VS. Key components include: BULB(FOR HEADLAMP, NO.1), BULB(FOR HEADLAMP, NO.2), CORD, HEADLAMP, UNIT, HEADLAMP, RH, COVER, HEADLAMP, NO.1.
