Toyota WILL VS — FRONT STEERING GEAR & LINK
40120GEAR ASSY,POWER STEERING,REBUILT
44200LINK ASSY, POWER STEERING
44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)
45046END SUB-ASSY, TIE ROD, RH
45046ANUT, CASTLE(FOR TIE ROD END)
45047END SUB-ASSY, TIE ROD, LH
45503END SUB-ASSY, STEERING RACK
45503BWASHER, CLAW(FOR STEERING RACK END)
45535BOOT, STEERING RACK, NO.1
45535BCLIP(FOR STEERING RACK BOOT)
45535DCLAMP(FOR STEERING RACK BOOT NO.1)
45536BOOT, STEERING RACK, NO.2
45536ACLAMP(FOR STEERING RACK BOOT NO.2)
9011912379
main90119-12379
9017014012
main90170-14012
9538103020
main95381-03020

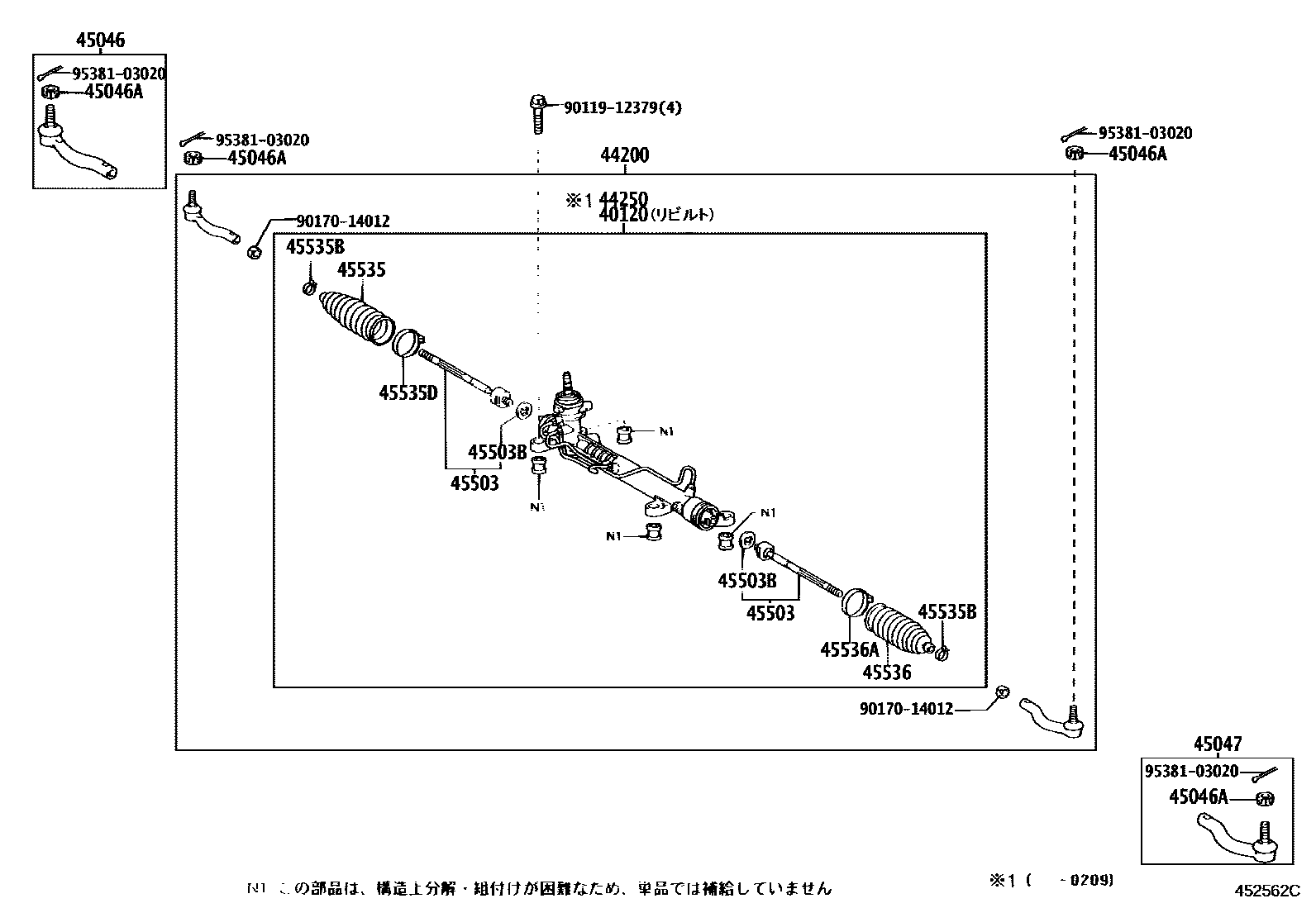

16 parts on this diagram · 4 diagrams in section
FRONT STEERING GEAR & LINK for Toyota WILL VS
This section contains 22 genuine Toyota parts for the FRONT STEERING GEAR & LINK system of the Toyota WILL VS. Key components include: GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION), GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE, GEAR ASSY,POWER STEERING,REBUILT, LINK ASSY, POWER STEERING, GEAR ASSY, POWER STEERING(FOR RACK & PINION).
