Toyota WILL VS — FRONT SPRING & SHOCK ABSORBER

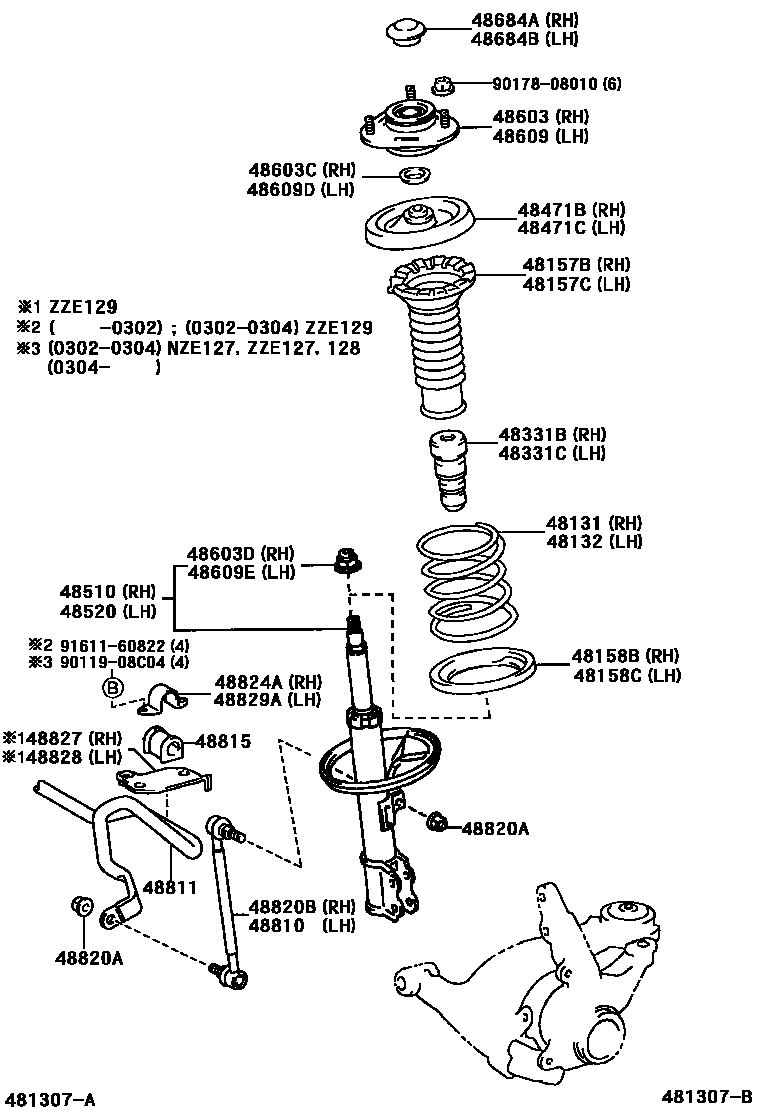

Parts diagram
48131SPRING, FRONT COIL, RH
main48131-1N490i200201-200404
main48131-1N550i200104-200404
main48131-1N670i200212-200404
48132SPRING, FRONT COIL, LH
main48131-1N490i200201-200404
main48131-1N550i200104-200212
main48131-1N670i200104-200404
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
main48157-12080i200104-200404
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
main48157-12080i200104-200404
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
main48158-47010i200104-200404
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
main48158-47010i200104-200404
48331BBUMPER, FRONT SPRING, RH
main48331-12200i200201-200404
main48331-12210i200104-200404
48331CBUMPER, FRONT SPRING, LH
main48331-12200i200201-200404
main48331-12210i200104-200404
48471BSEAT, FRONT COIL SPRING, UPPER RH
main48044-12100i200104-200404
48471CSEAT, FRONT COIL SPRING, UPPER LH
main48044-12100i200104-200404
48510ABSORBER ASSY, SHOCK, FRONT RH
main48510-80015i200201-200209
main48510-80032i200104-200404
sub48510-80223
main48510-80033i200104-200404
sub48510-80179
main48510-80090i200209-200404
48520ABSORBER ASSY, SHOCK, FRONT LH
main48520-19665i200201-200209
main48520-19775i200104-200404
sub48520-80049
main48520-19785i200104-200404
sub48520-80026
main48520-19865i200209-200404
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
main48609-12420i200201-200209
main48609-13010i200209-200404
48603CSEAL, DUST(FOR FRONT SUSPENSION SUPPORT RH)
main90303-22002i200104-200404
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
main90179-14015i200104-200404
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
main48609-12420i200201-200209
main48609-13010i200104-200404
48609DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT LH)
main90303-22002i200105-200404
main90303-22049i200104-200105
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
main90179-14015i200104-200404
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
main48684-12070i200104-200212
main48684-52010i200212-200404
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
main48684-12070i200104-200212
main48684-52010i200212-200404
48810LINK ASSY, FRONT STABILIZER, LH
main48820-47010i200104-200404
48811BAR, STABILIZER, FRONT
main48811-13050i200104-200404
main48811-13060i200104-200404
main48811-1A140i200201-200209
main48811-1A240i200209-200404
48815BUSH, FRONT STABILIZER BAR, NO.1
main48815-12310×2i200201-200209
main48815-12320×2i200209-200404
main48815-13040×2i200104-200404
main48815-13050×2i200104-200404
48820ANUT(FOR FRONT STABILIZER LINK)
main90179-12151×4i200104-200404
48820BLINK ASSY, FRONT STABILIZER, RH
main48820-47010i200104-200404
48824ABRACKET, FRONT STABILIZER, NO.1 RH
main48824-26210i200201-200404
main48824-28190i200104-200404
48827BRACKET, FRONT STABILIZER, NO.2 RH
main48827-42010i200104-200404
48828BRACKET, FRONT STABILIZER, NO.2 LH
main48828-42010i200104-200404
48829ABRACKET, FRONT STABILIZER, NO.1 LH
main48824-26210i200201-200404
main48824-28190i200104-200404
9011908C04
main90119-08C04
9017808010
main90178-08010
9161160822
main91611-60822

32 parts on this diagram · 1 diagram in section
