Toyota WILL VS — FRONT DOOR PANEL & GLASS

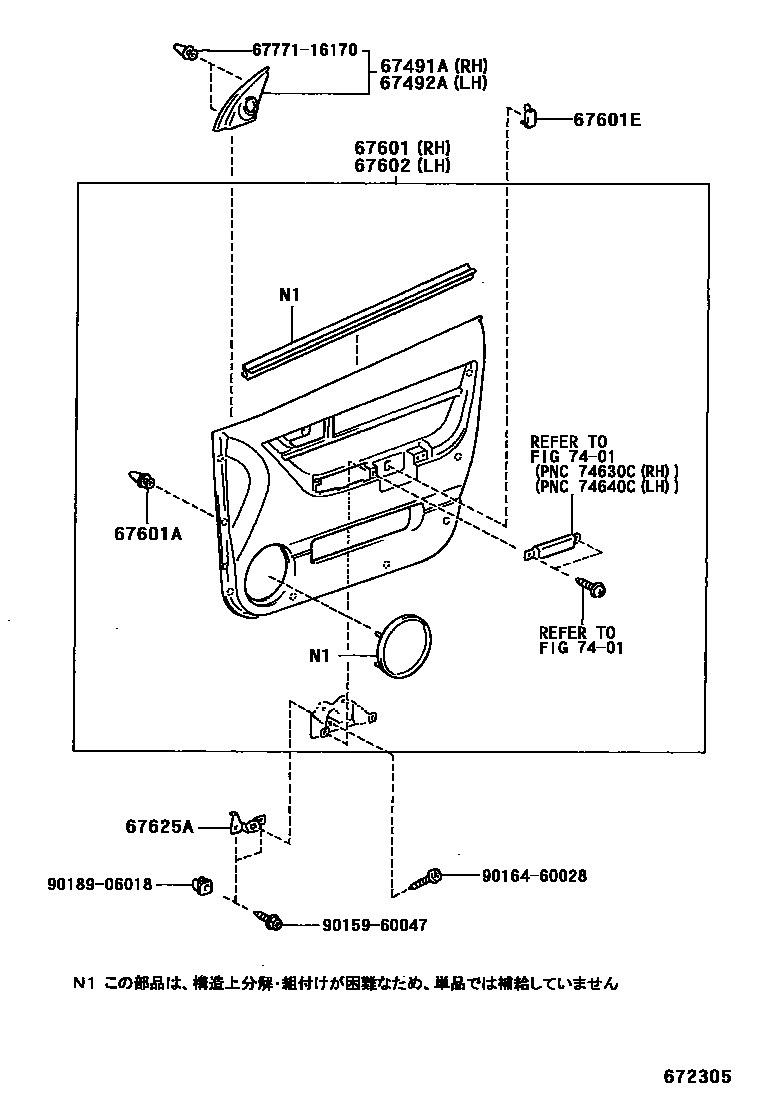

Parts diagram

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-12490-C0i200104-200404

BLACK,TRIM2#

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main64792-12490-C0i200206-200207

main67492-12490-C0i200202-200204

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-1L200-C0i200104-200404

BLACK,TRIM2#

main67610-1L200-C1i200201-200404

BLACK,TRIM2#

main67610-1L200-C2i200202-200204

main67610-1L460-C0i200201-200404

main67610-1L460-C1i200208-200209

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main90467-10161×16i200104-200404

67601ECAP(FOR FRONT DOOR TRIM BOARD)

main74223-28020-C0×2i200202-200204

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-1N720-C0i200104-200404

BLACK,TRIM2#

main67620-1N720-C1i200201-200404

BLACK,TRIM2#

main67620-1N720-C2i200206-200207

main67620-1T130-C0i200201-200404

main67620-1T130-C1i200208-200209

67625ABRACKET, FRONT DOOR TRIM, NO.1

main67625-12140×2i200104

7401ARMREST & VISOR

→ Go to FIG 74-01

6777116170WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16170

9015960047

main90159-60047

9016460028

main90164-60028

9018906018

main90189-06018

12 parts on this diagram · 3 diagrams in section

FRONT DOOR PANEL & GLASS for Toyota WILL VS

This section contains 39 genuine Toyota parts for the FRONT DOOR PANEL & GLASS system of the Toyota WILL VS. Key components include: PANEL SUB-ASSY, FRONT DOOR, RH, PANEL SUB-ASSY, FRONT DOOR, LH, FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH, FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH, GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH.
