Toyota WILL VS — FRONT BUMPER & BUMPER STAY
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
SUPER WHITE 2,040
SILVER ME.,1D0
BLACK,202
DK.RED MC.,3Q2
SUPER RED II,3E5
BEIGE ME.,4P7
YELLOW M.M.,584
GRAYISH BLUE ME.,8N6
BLUE M.M.,8Q1
DARK PURPLE MC.,946
52127CCOVER, FRONT BUMPER HOLE
52161CPIECE, FRONT BUMPER
52541PROTECTOR, FRONT BUMPER
5301RADIATOR GRILLE
5302HOOD & FRONT FENDER
53119EPROTECTOR, RADIATOR GRILLE
55797BSEAL, BUMPER FRONT
8101HEADLAMP
8102FOG LAMP
81481ECOVER, FOG LAMP, RH
81482CCOVER, FOG LAMP, LH
9010906003
main90109-06003
9015950383
main90159-50383
9015960602
main90159-60602
9017906127
main90179-06127
9017908246
main90179-08246
9018906029
main90189-06029
91515B0818
main91515-B0818
9415080640
main94150-80640
23 parts on this diagram · 1 diagram in section

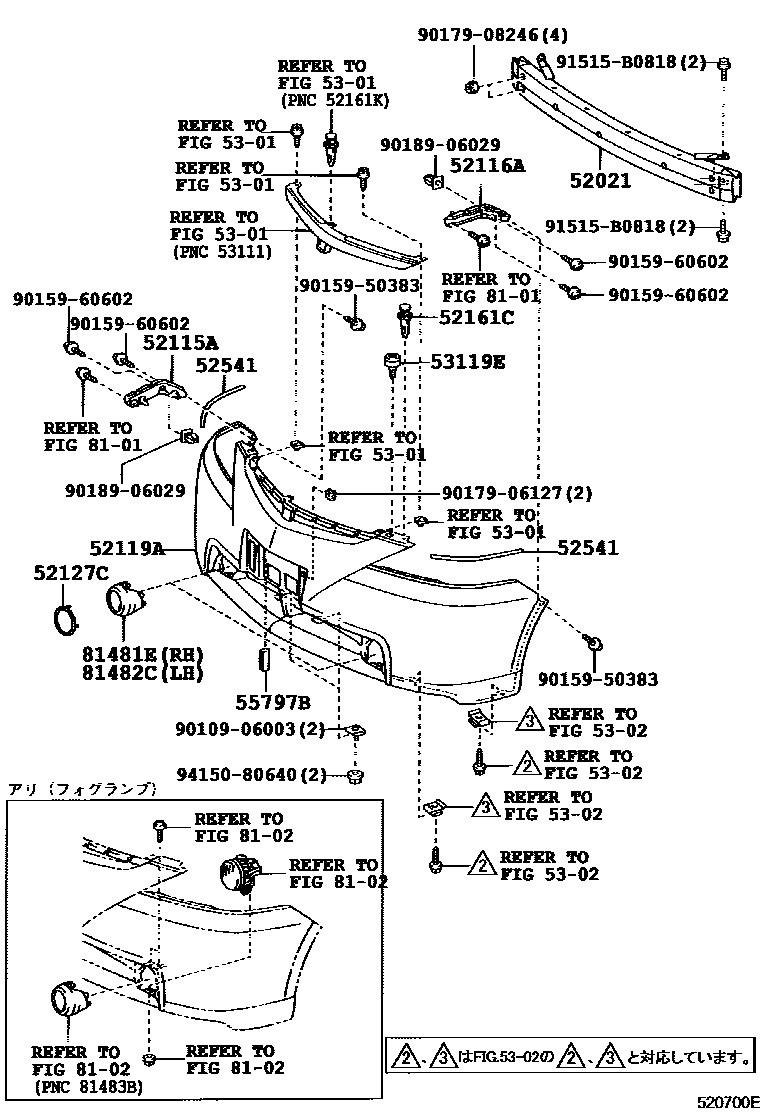

FRONT BUMPER & BUMPER STAY for Toyota WILL VS
This section contains 23 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota WILL VS. Key components include: REINFORCEMENT SUB-ASSY, FRONT BUMPER, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER, COVER, FRONT BUMPER HOLE.
