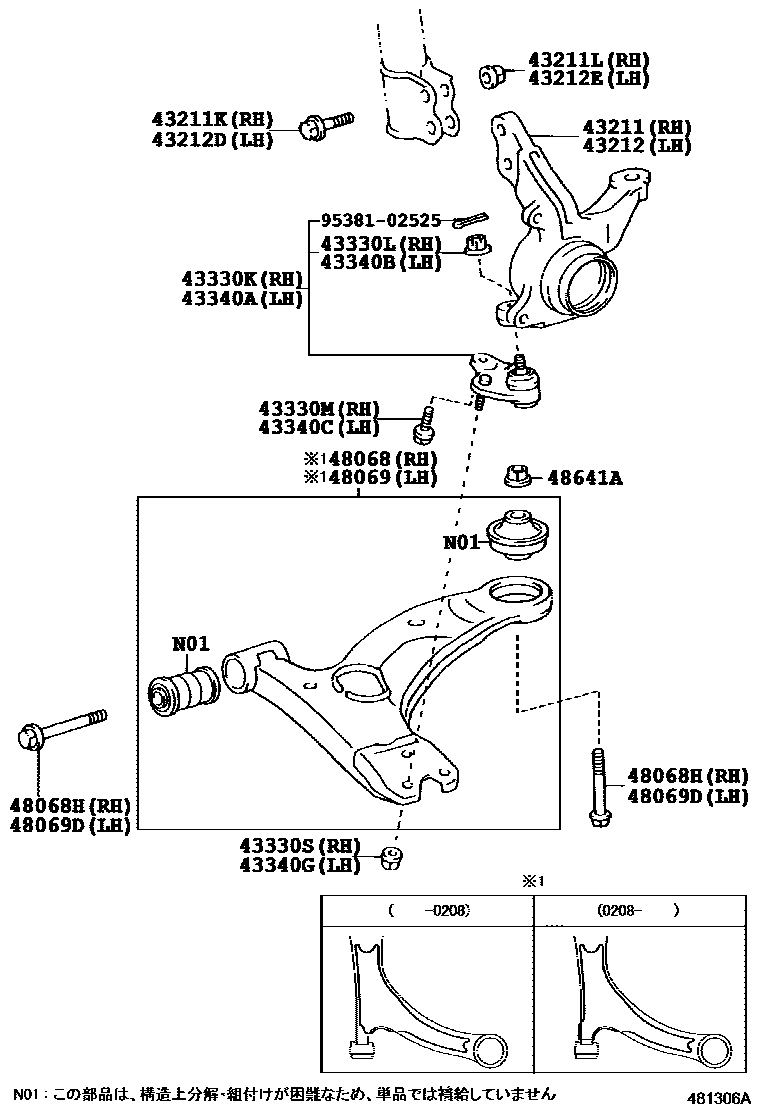

Toyota WILL VS — FRONT AXLE ARM & STEERING KNUCKLE
43211KNUCKLE, STEERING, RH
43211KBOLT (FOR STEERING KNUCKLE RH)
43211LNUT (FOR STEERING KNUCKLE RH)
43212KNUCKLE, STEERING, LH
43212DBOLT (FOR STEERING KNUCKLE LH)
43212ENUT (FOR STEERING KNUCKLE LH)
43330KJOINT ASSY, LOWER BALL, FRONT RH
43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
43330MBOLT (FOR FRONT LOWER BALL JOINT RH)
43330SNUT (FOR FRONT LOWER BALL JOINT RH)
43340AJOINT ASSY, LOWER BALL, FRONT LH
43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
43340CBOLT (FOR FRONT LOWER BALL JOINT LH)
43340GNUT (FOR FRONT LOWER BALL JOINT LH)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)
9538102525
main95381-02525
20 parts on this diagram · 1 diagram in section
FRONT AXLE ARM & STEERING KNUCKLE for Toyota WILL VS
This section contains 20 genuine Toyota parts for the FRONT AXLE ARM & STEERING KNUCKLE system of the Toyota WILL VS. Key components include: KNUCKLE, STEERING, RH, BOLT (FOR STEERING KNUCKLE RH), NUT (FOR STEERING KNUCKLE RH), KNUCKLE, STEERING, LH, BOLT (FOR STEERING KNUCKLE LH).
