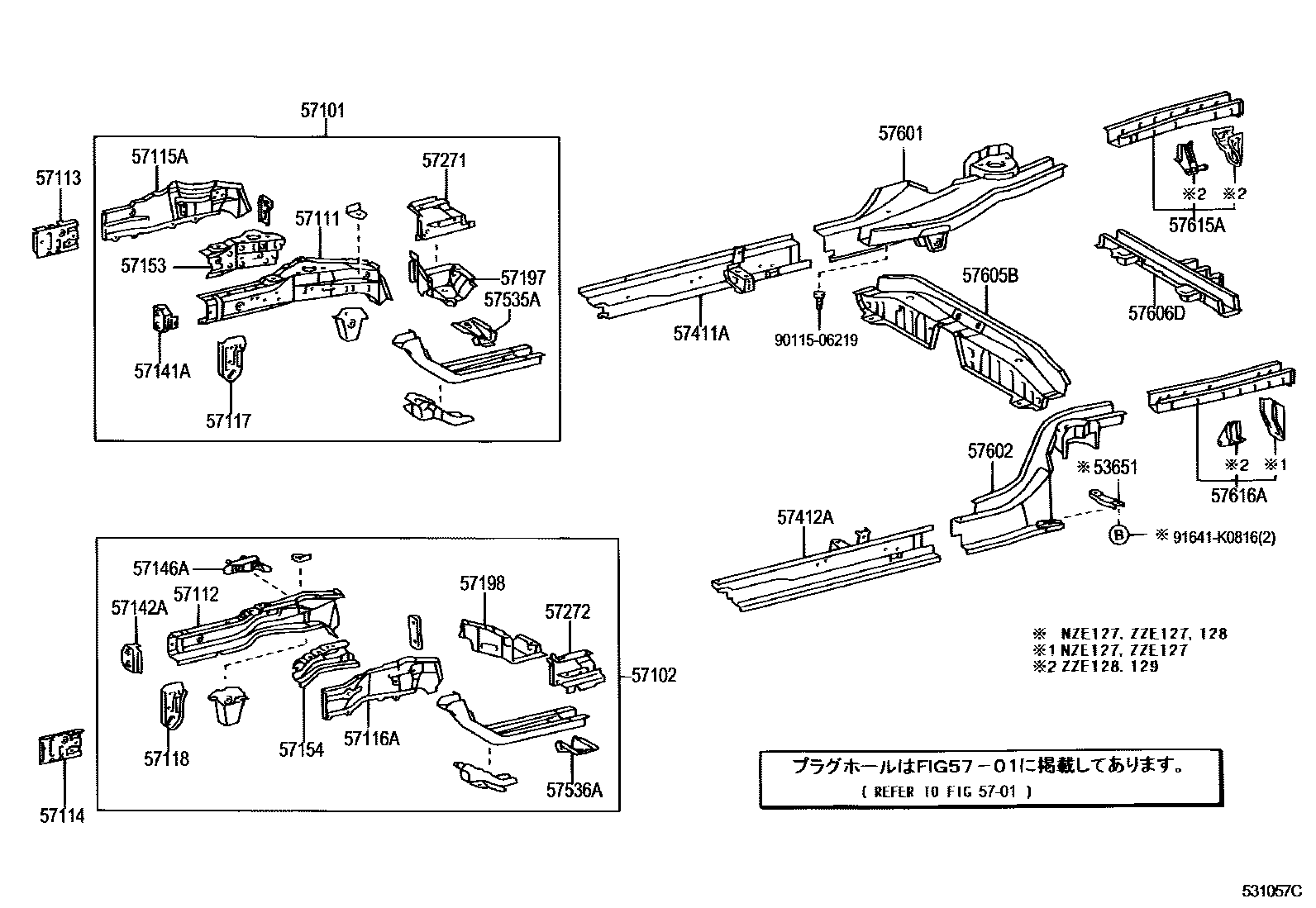

Toyota WILL VS — FLOOR SIDE MEMBER
53651BRACE, REAR FLOOR SIDE MEMBER
5701HOLE PLUG
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH
57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH
57141ASUPPORT, FRONT BUMPER ARM, RH
57142ASUPPORT, FRONT BUMPER ARM, LH
57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57153REINFORCEMENT, FRONT SIDE MEMBER, NO.2 RH
57154REINFORCEMENT, FRONT SIDE MEMBER, NO.2 LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH
57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH
57411AMEMBER, FLOOR SIDE, INNER RH
57412AMEMBER, FLOOR SIDE, INNER LH
57535ABRACE, FRONT FLOOR, RH
57536ABRACE, FRONT FLOOR, LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606DMEMBER SUB-ASSY, REAR ABSORBER MOUNTING
57615AMEMBER, REAR FLOOR SIDE, REAR RH
57616AMEMBER, REAR FLOOR SIDE, REAR LH
9011506219
main90115-06219
91641K0816
main91641-K0816
33 parts on this diagram · 1 diagram in section
FLOOR SIDE MEMBER for Toyota WILL VS
This section contains 33 genuine Toyota parts for the FLOOR SIDE MEMBER system of the Toyota WILL VS. Key components include: BRACE, REAR FLOOR SIDE MEMBER, HOLE PLUG, MEMBER SUB-ASSY, FRONT SIDE, RH, MEMBER SUB-ASSY, FRONT SIDE, LH, MEMBER, FRONT SIDE, RH.
