Toyota WILL VS — ENGINE OIL PUMP

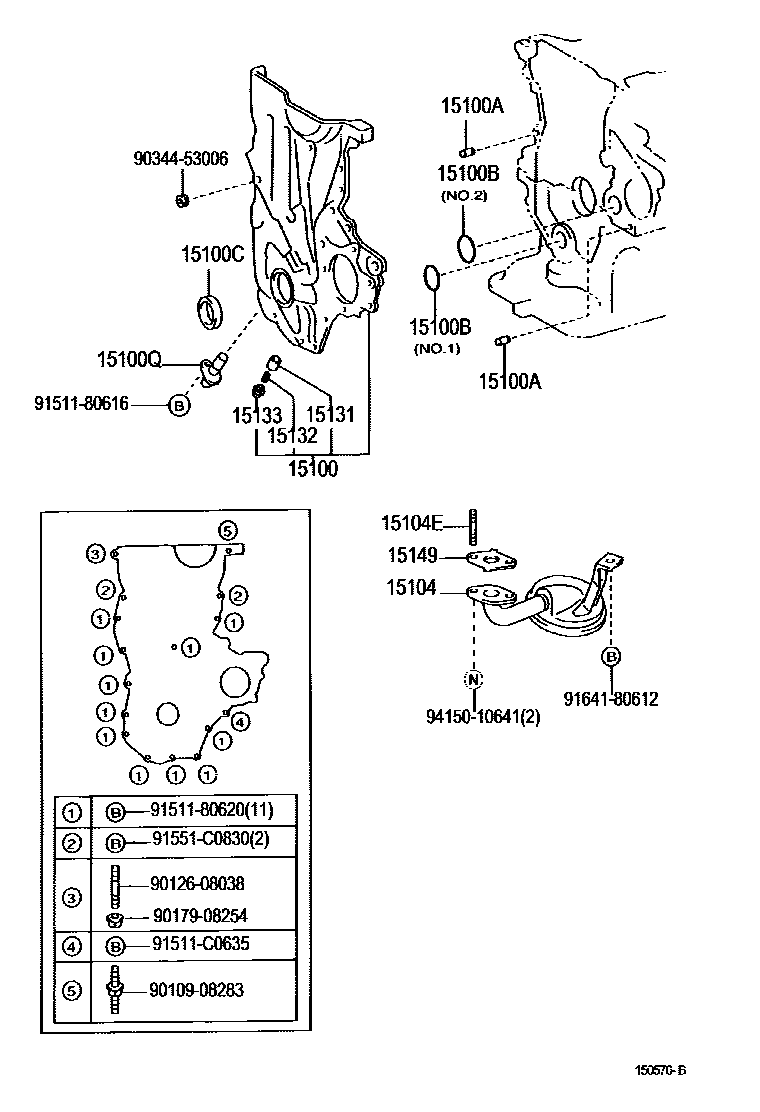

Parts diagram

15100PUMP ASSY, OIL

main15100-21040i200201-200403

main15100-22040i200104-200206

main15100-22041i200206-200403

main15100-88600i200104-200403

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003×2i200201-200403

main90253-09003×2i200104-200403

15100BRING, O(FOR OIL PUMP)

main90301-31012i200201-200403

main90301-42006i200201-200403

15100CSEAL(FOR OIL PUMP)

main90311-25021i200201-200403

15100QSENSOR, CRANK POSITION

main90919-05045i200201-200403

15104STRAINER SUB-ASSY, OIL

main15104-21021i200201-200403

main15104-22022i200104-200204

main15104-22023i200204-200403

main15104-88600i200104-200403

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021×2i200201-200403

15131VALVE, OIL PUMP RELIEF

main15131-21020i200201-200403

main15131-24010i200206-200403

main15131-46040i200104-200403

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21020i200201-200403

main15132-22040i200206-200403

main15132-46020i200104-200403

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i200104-200403

main15133-20010i200206-200403

main15133-21020i200201-200403

15149GASKET, OIL STRAINER FLANGE

main15149-22010i200104-200403

main15149-88600i200104-200403

main16258-21010i200201-200302

main16258-21030i200302-200403

9010908283

main90109-08283

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9151180616

main91511-80616

9151180620

main91511-80620

91511C0635

main91511-C0635

91551C0830

main91551-C0830

9164180612

main91641-80612

9415010641

main94150-10641

21 parts on this diagram · 3 diagrams in section

ENGINE OIL PUMP for Toyota WILL VS

This section contains 28 genuine Toyota parts for the ENGINE OIL PUMP system of the Toyota WILL VS. Key components include: PUMP ASSY, OIL, PIN, RING(FOR OIL PUMP SET), RING, O(FOR OIL PUMP), SEAL(FOR OIL PUMP), SENSOR, CRANK POSITION.
