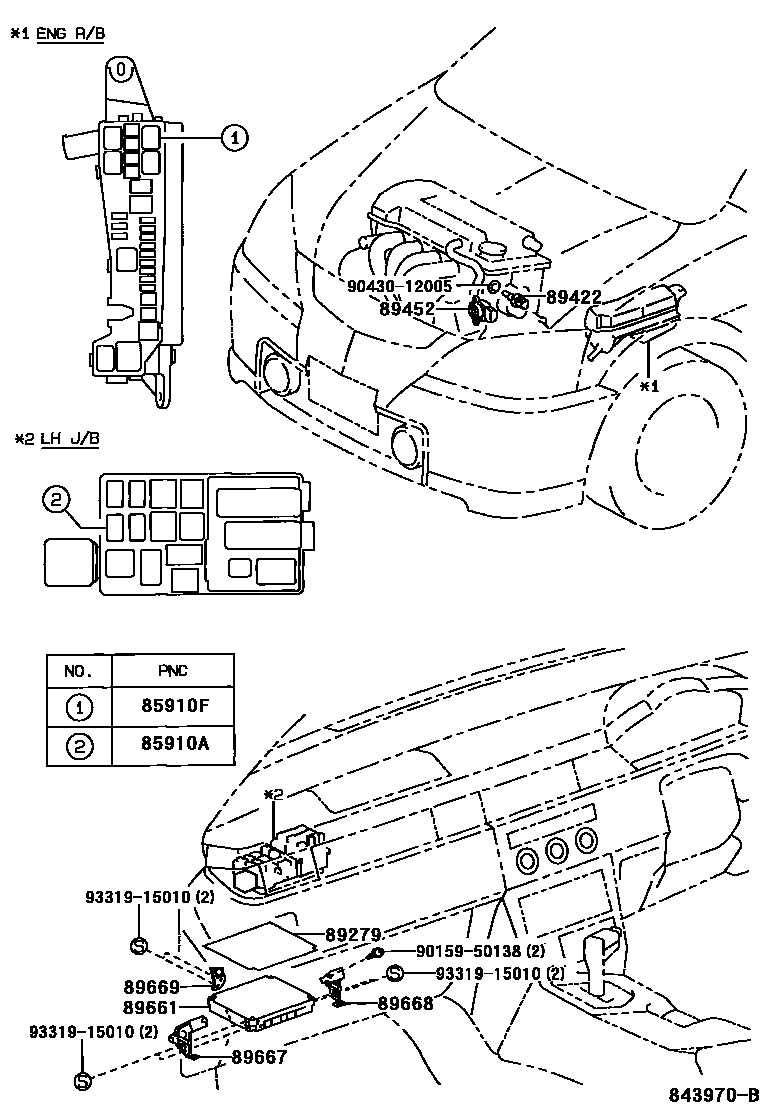

Toyota WILL VS — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02020iNZE127,ZZE12#200104

sub90987-02027

85910FRELAY, COMPUTER (FOR EFI)

main90987-02020iNZE127,ZZE12#200104

sub90987-02027

89279COVER, ENGINE CONTROL COMPUTER

main89279-12150iNZE127,ZZE127,129200212

main89279-12160iZZE128200212

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iNZE127,ZZE12#200104

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iZZE127,129200104-200404

main89452-35020iZZE128200104-200404

89661COMPUTER, ENGINE CONTROL

main89661-1E380iZZE129200104

main89661-1E390iZZE127200104

main89666-12170iNZE127200201-200212

main89666-12260iZZE128..MTM200201

main89666-12270iZZE128..ATM200104

main89666-12390iNZE127200212

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-12190iNZE127,ZZE127,129200212

main89667-12200iZZE128200212

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12100iNZE127,ZZE127,129200212

main89668-12110iNZE127,ZZE128200104-200212

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-12030iNZE127,ZZE12#200104

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

12 parts on this diagram · 2 diagrams in section
