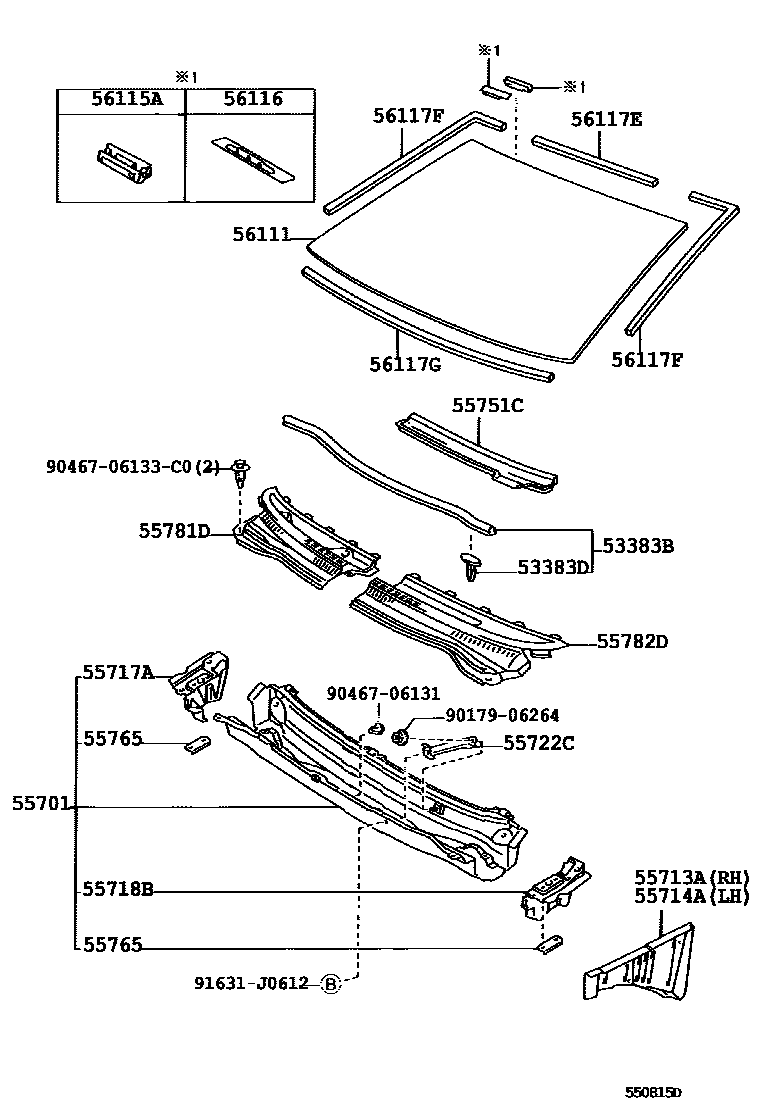

Toyota WILL VS — COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-12140iNZE127,ZZE12#200104-200404

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108×8iNZE127,ZZE12#200104-200404

55701PANEL SUB-ASSY, COWL

main55700-1A391iNZE127,ZZE12#200104-200404

55713APANEL, COWL TOP SIDE, RH

main55713-12110iNZE127,ZZE12#200104-200404

55714APANEL, COWL TOP SIDE, LH

main55714-12110iNZE127,ZZE12#200104-200404

55717APANEL, COWL TOP SIDE, INNER RH

main55717-12170iNZE127,ZZE12#200104-200404

55718BPANEL, COWL TOP SIDE, INNER LH

main55718-12120iNZE127,ZZE12#200104-200404

55722CBRACE, COWL TOP TO COWL, INNER

main55722-12030iNZE127,ZZE12#200104-200404

55751CSHIELD, COWL VENTILATOR SPLASH

main55751-12061iNZE127,ZZE12#200104-200404

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010×2iNZE127,ZZE12#200104-200404

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-12230iNZE127,ZZE12#200104-200404

main55708-12240iNZE127,ZZE12#200104-200404

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-12020iNZE127,ZZE12#200104-200404

main55709-12030iNZE127,ZZE12#200104-200404

56111GLASS, WINDSHIELD

main56111-1A840iNZE127,ZZE12#200104-200404

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010×2iNZE127,ZZE12#200104-200404

56116SPACER, WINDSHIELD GLASS

main56116-22050×2iNZE127,ZZE12#200104-200404

56117EDAM, WINDOW GLASS ADHESIVE

main56117-12240iNZE127,ZZE12#200104-200404

sub56117-47010

56117FDAM, WINDOW GLASS ADHESIVE

main56117-12240×2iNZE127,ZZE12#200104-200404

sub56117-47010

56117GDAM, WINDOW GLASS ADHESIVE

main56117-12240iNZE127,ZZE12#200104-200404

sub56117-47010

9017906264

main90179-06264

9046706131

main90467-06131

9046706133C0

main90467-06133C0

91631J0612

main91631-J0612

22 parts on this diagram · 1 diagram in section
