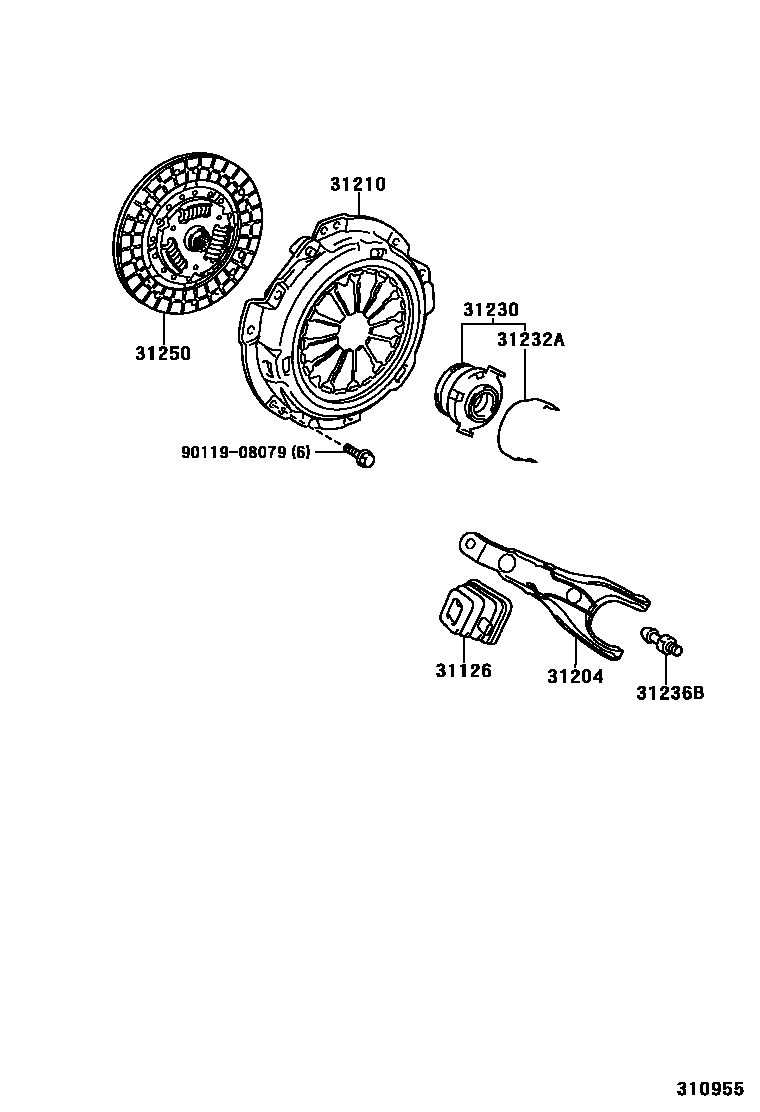

Toyota WILL VS — CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iZZE128..MTM200201-200404

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010iZZE128..MTM200201-200404

31210COVER ASSY, CLUTCH

main31210-20380iZZE128..MTM200201

sub31210-12250

31230BEARING ASSY, CLUTCH RELEASE

main31230-12191iZZE128..MTM200201-200404

31232ACLIP, RELEASE BEARING HUB

main31232-12070iZZE128..MTM200201-200404

31236BSUPPORT, RELEASE FORK

main31236-12020iZZE128..MTM200201-200404

31250DISC ASSY, CLUTCH

main31250-20280iZZE128..MTM200201

sub31250-12570

9011908079

main90119-08079

8 parts on this diagram · 1 diagram in section
