Toyota WILL VS — ARMREST & VISOR

0001 1�-���� 0002 1�����

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12490-C0iZZE128..MTM200206-200207

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12400-C0iZZE128..MTM200202-200204

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-12060-C0iNZE127,ZZE12#200104-200404

BLACK,TRIM2#

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-12060-C0iNZE127,ZZE12#200104-200404

BLACK,TRIM2#

74630CGRIP ASSY, DOOR ASSIST, RH

main74630-12070-C0iZZE128..MTM200202-200204

74630GGRIP ASSY, REAR DOOR ASSIST RH

main74630-12070-C0iZZE128..MTM200206-200207

74640CGRIP ASSY, DOOR ASSIST, LH

main74630-12070-C0iZZE128..MTM200206-200207

74640DGRIP ASSY, REAR DOOR ASSIST LH

main74630-12070-C0iZZE128..MTM200202-200204

9016750018

main90167-50018

9046710203

main90467-10203

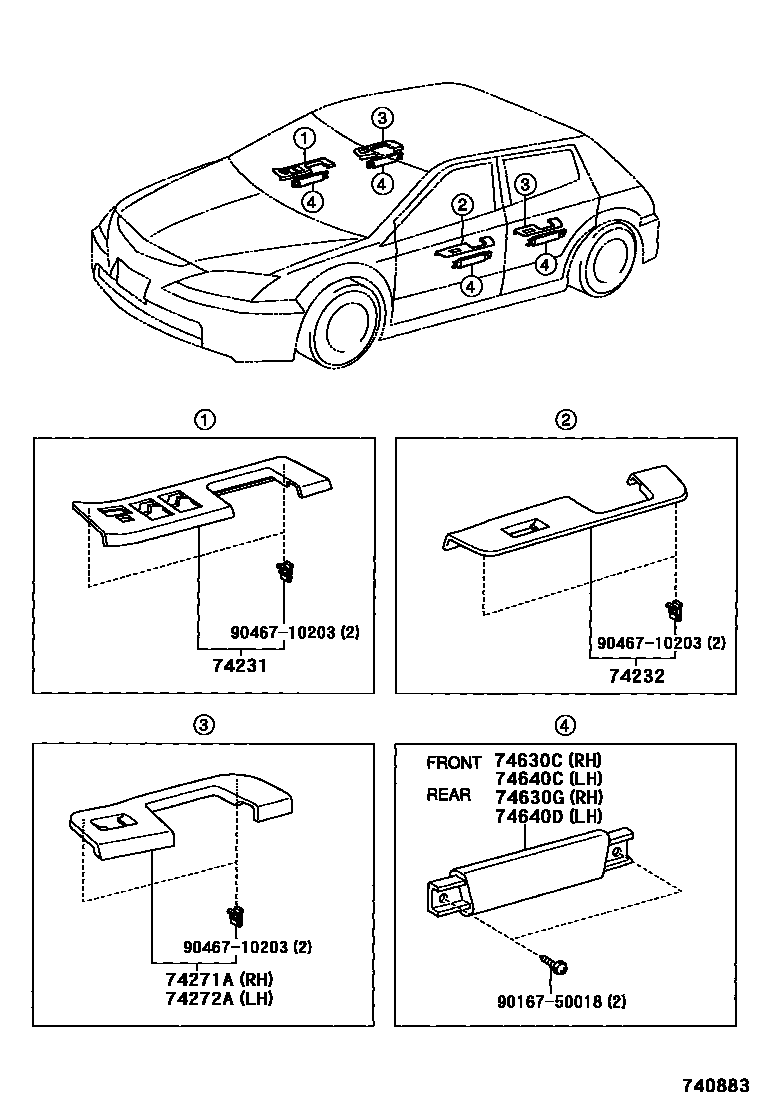

10 parts on this diagram · 2 diagrams in section
