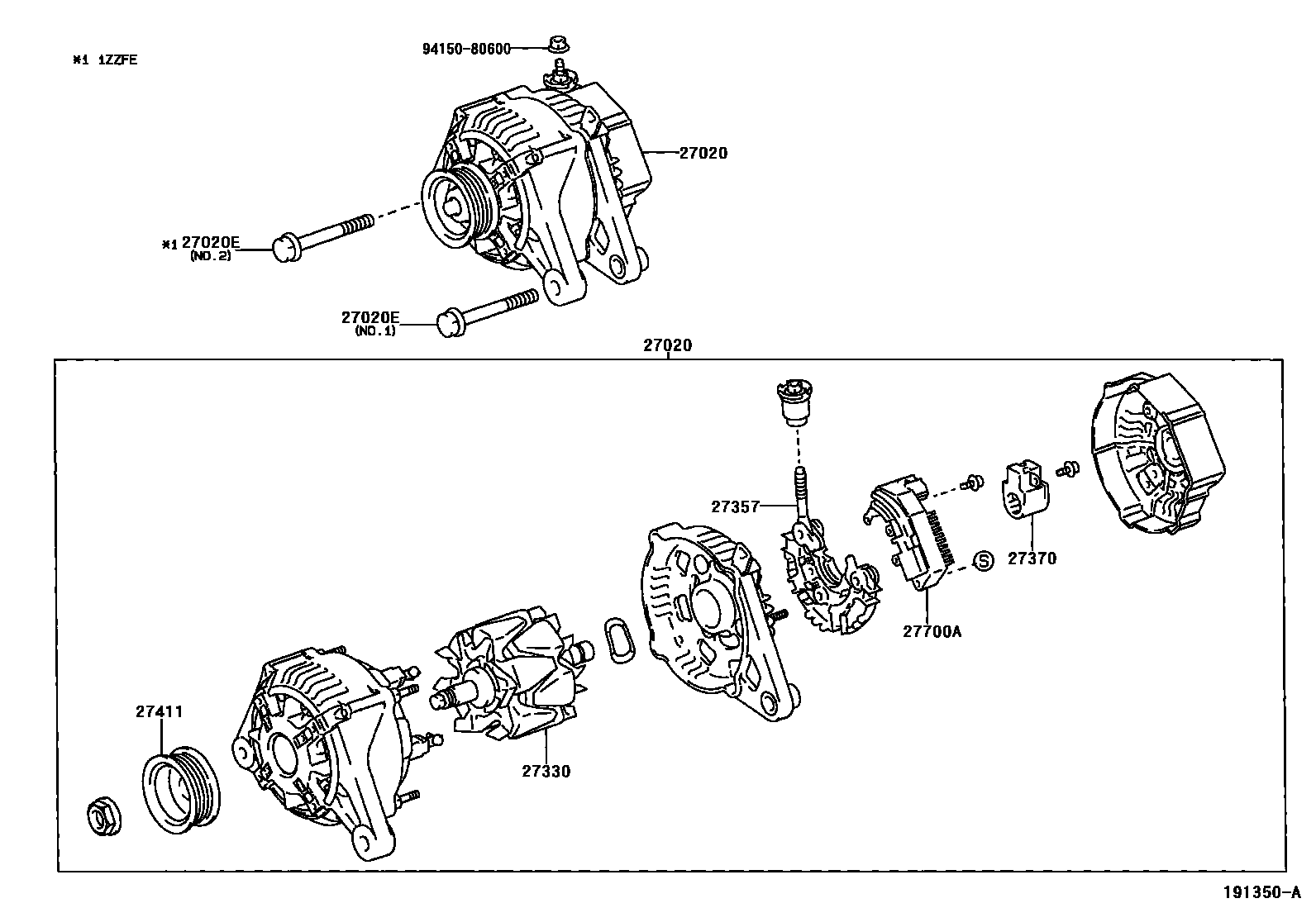

Toyota WILL VS — ALTERNATOR
27020ALTERNATOR ASSY
27020EBOLT(FOR ALTERNATOR)
27330ROTOR ASSY, ALTERNATOR
27357HOLDER, ALTERNATOR, W/RECTIFIER
27370HOLDER ASSY, ALTERNATOR BRUSH
27411PULLEY, ALTERNATOR
27700AREGULATOR ASSY, GENERATOR
9415080600
main94150-80600
8 parts on this diagram · 3 diagrams in section
ALTERNATOR for Toyota WILL VS
This section contains 9 genuine Toyota parts for the ALTERNATOR system of the Toyota WILL VS. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), ROTOR ASSY, ALTERNATOR, HOLDER, ALTERNATOR, W/RECTIFIER, HOLDER ASSY, ALTERNATOR BRUSH.
