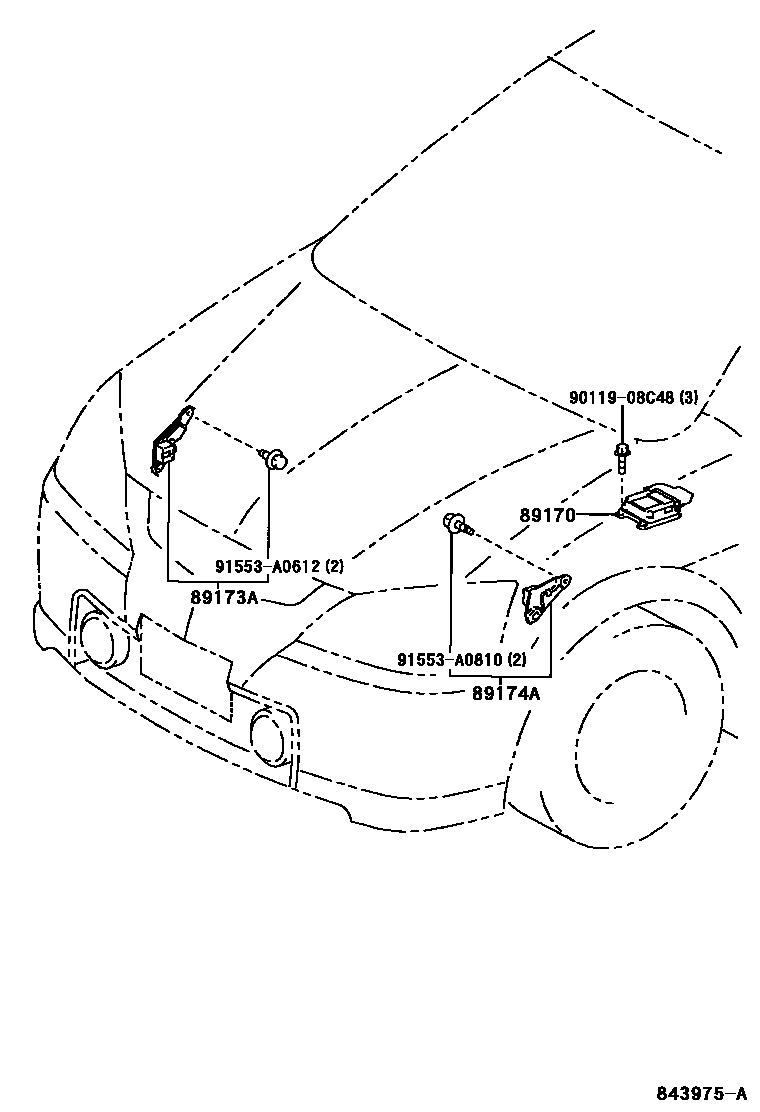

Toyota WILL VS — AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-12350i200104-200210

main89170-12480i200210-200401

main89170-12481i200401-200404

89173ASENSOR, AIRBAG, FRONT RH

main89173-19235i200104-200404

89174ASENSOR, AIRBAG, FRONT LH

main89174-19045i200104-200404

9011908C48

main90119-08C48

91553A0612

main91553-A0612

91553A0810

main91553-A0810

6 parts on this diagram · 1 diagram in section

AIR BAG for Toyota WILL VS

This section contains 6 genuine Toyota parts for the AIR BAG system of the Toyota WILL VS. Key components include: SENSOR ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH.
