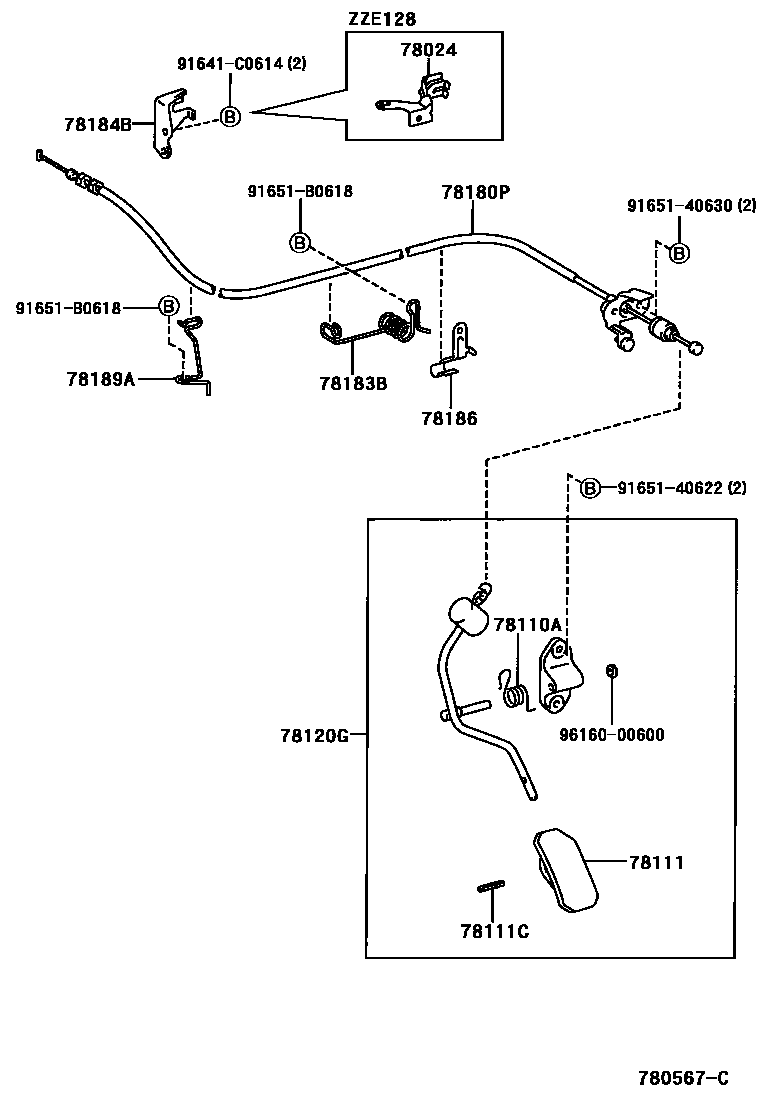

Toyota WILL VS — ACCELERATOR LINK

78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE

main78024-88601iZZE128200104-200403

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90959-03307iNZE127,ZZE12#200104-200404

78111PEDAL, ACCELERATOR

main78111-32020iNZE127,ZZE12#200104-200404

78111CPIN (FOR ACCELERATOR PEDAL)

main90254-04019iNZE127,ZZE12#200104-200404

78120GROD ASSY, ACCELERATOR PEDAL

main78120-12290iNZE127200201-200404

main78120-12340iZZE12#200104-200404

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-13031iNZE127200201-200212

main78180-13051iZZE127,129200104-200212

main78180-1A711iNZE127200212-200404

sub78180-1A712

main78180-1A751iZZE127,129200212-200404

sub78180-1A752

main78180-1A770iZZE128200104-200212

main78180-1A771iZZE128200212-200404

sub78180-1A772

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12240iNZE127,ZZE12#200104-200404

sub78183-13010

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12360iZZE127,129200104-200403

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12370iNZE127,ZZE12#200104-200404

78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2

main78189-12100iNZE127,ZZE12#200104-200404

91641C0614

main91641-C0614

9165140622

main91651-40622

9165140630

main91651-40630

91651B0618

main91651-B0618

9616000600

main96160-00600

15 parts on this diagram · 1 diagram in section
