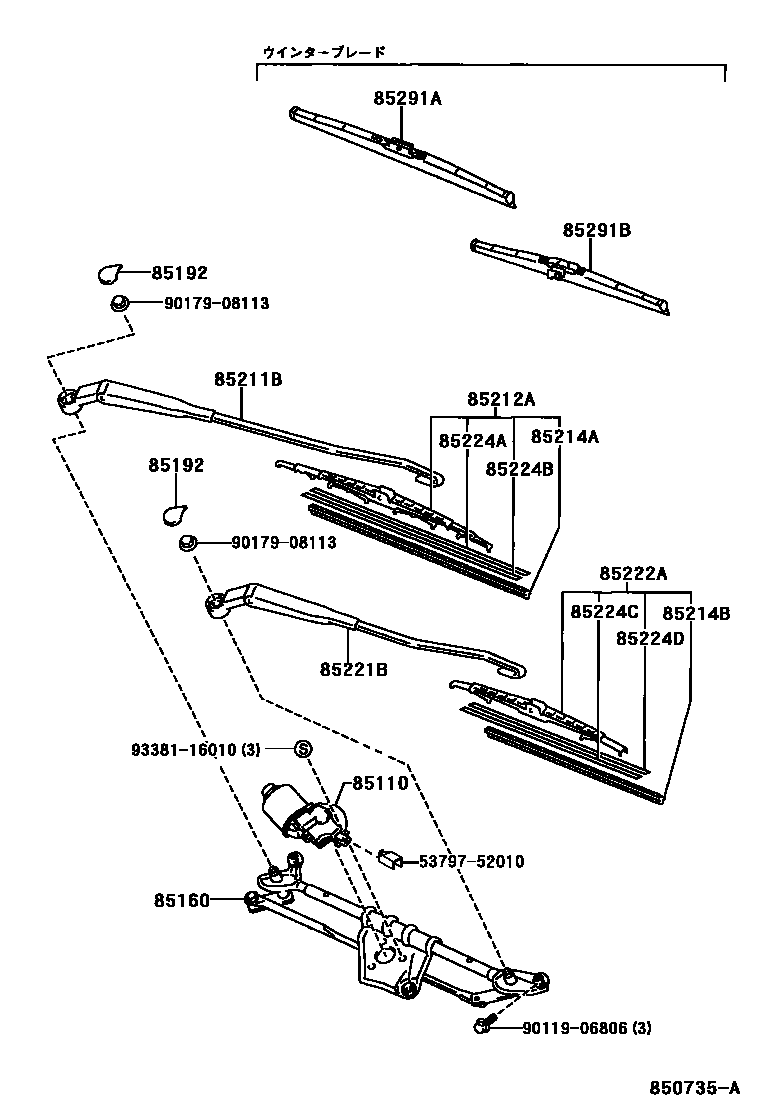

Toyota WILL VI — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52150iNCP19200001

main85110-52160iNCP19200001

85160LINK ASSY, WINDSHIELD WIPER

main85150-52100iNCP19200001

main85150-52110iNCP19200001

85192COVER, WINDSHIELD WIPER ARM

main85292-16010×2iNCP19200001

85211BARM, FRONT WIPER, RH

main85211-52110iNCP19200001

85212ABLADE, FR WIPER, RH

main85212-52120iNCP19200001

sub85212-52121

85214ARUBBER, WIPER, RH

main85214-60070iNCP19200001

sub85214-53041

85214BRUBBER, WIPER, LH

main85214-20350iNCP19200001

sub85214-22420

85221BARM, FRONT WIPER, LH

main85221-52110iNCP19200001

85222ABLADE, FR WIPER, LH

main85222-52070iNCP19200001

sub85222-52071

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-26030iNCP19200001

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-26030iNCP19200001

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20310iNCP19200001

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20310iNCP19200001

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-60020iNCP19200001

sub85291-33050

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-30030iNCP19200001

sub85291-22080

5379752010BRACKET, COOL AIR INTAKE SILENCER

main53797-52010

9011906806

main90119-06806

9017908113

main90179-08113

9338116010

main93381-16010

19 parts on this diagram · 1 diagram in section
