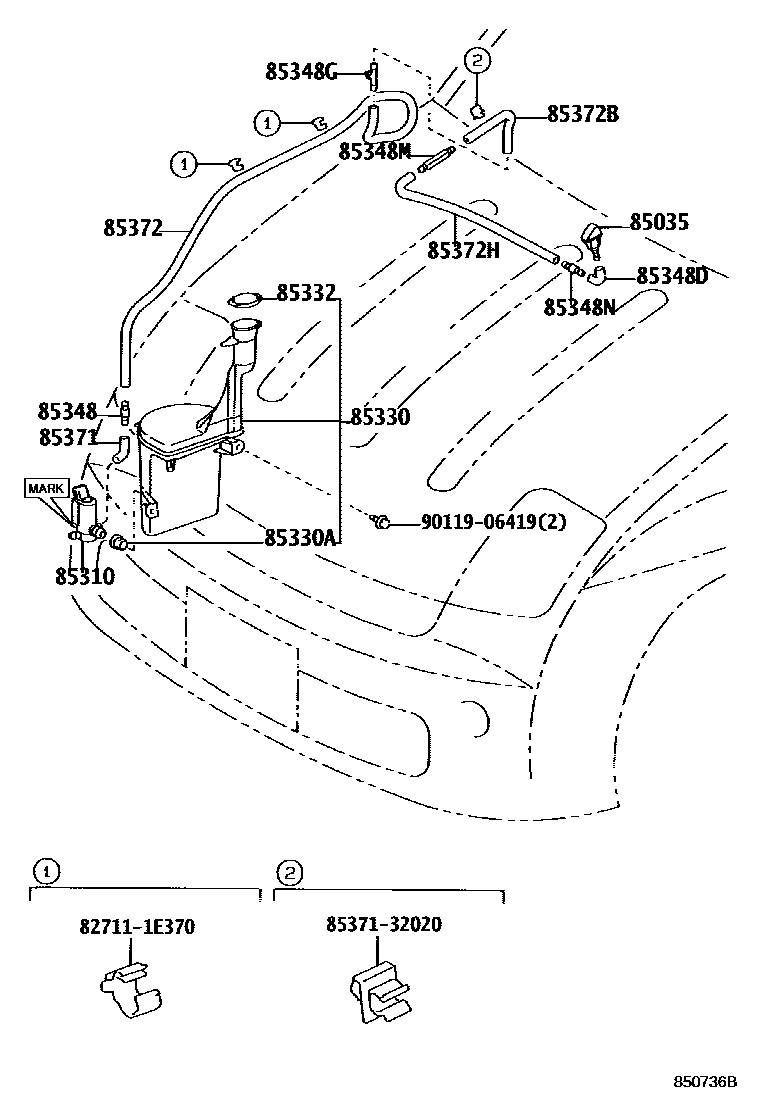

Toyota WILL VI — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-52120iNCP19200001

sub85381-52180

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10280iNCP19200001-200003

main85330-52010iNCP19200003

85330JAR ASSY, WINDSHIELD WASHER

main85315-52010iNCP19200001

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNCP19200001

85332CAP, WINDSHIELD WASHER JAR

main85316-26030iNCP19200001

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNCP19200001

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iNCP19200001

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-17050iNCP19200001

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-32150iNCP19200001

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85349-89122iNCP19200001

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNCP19200001

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iNCP19200001

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iNCP19200001

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iNCP19200001

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

9011906419

main90119-06419

17 parts on this diagram · 1 diagram in section
