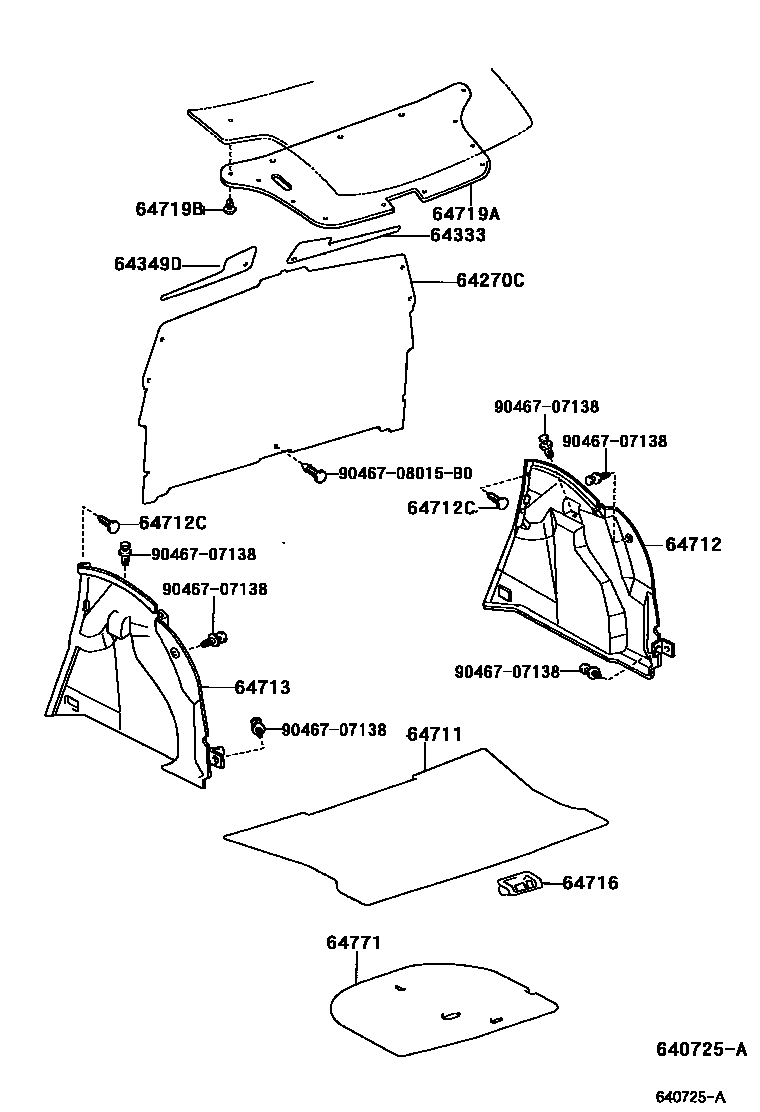

Toyota WILL VI — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

64270CBOARD ASSY, ROOM PARTITION

main64271-52020-C0i200001-200008

BLACK,TRIM4#

64333COVER, PACKAGE TRAY TRIM, SIDE

main64333-52010-C1i200001-200008

BLACK,TRIM4#

64349DCOVER, PACKAGE TRAY TRIM SIDE, LH

main64349-52010-C1i200001-200008

BLACK,TRIM4#

64711MAT, LUGGAGE COMPARTMENT FLOOR

main64711-52060-C0i200001-200008

BLACK,TRIM4#

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-52010-C0i200001-200008

BLACK,TRIM4#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-06061-C0×4i200001-200008

BLACK,TRIM4#

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-52010-C0i200001-200008

BLACK,TRIM4#

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-10080-C0i200001-200008

BLACK,TRIM4#

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-52020-C0i200001-200008

BLACK,TRIM4#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-09169-C0×13i200001-200008

BLACK,TRIM4#

64771COVER, SPARE WHEEL

main64770-52080i200001

9046707138

main90467-07138

9046708015B0

main90467-08015B0

13 parts on this diagram · 1 diagram in section

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT for Toyota WILL VI

This section contains 13 genuine Toyota parts for the PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT system of the Toyota WILL VI. Key components include: BOARD ASSY, ROOM PARTITION, COVER, PACKAGE TRAY TRIM, SIDE, COVER, PACKAGE TRAY TRIM SIDE, LH, MAT, LUGGAGE COMPARTMENT FLOOR, COVER, LUGGAGE COMPARTMENT TRIM, RH.
