Toyota WILL VI — MOUNTING
1105CYLINDER BLOCK
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321BINSULATOR SUB-ASSY, DRIVE SHAFT HEAT
12322BRACKET, ENGINE MOUNTING, REAR NO.2
12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
9010510127
main90105-10127
9010510164
main90105-10164
9010510301
main90105-10301
9010510352
main90105-10352
9010510384
main90105-10384
9010510436
main90105-10436
9010510444
main90105-10444
9011910905
main90119-10905
9011912191
main90119-12191
9017908256
main90179-08256
9017910108
main90179-10108
9017910210
main90179-10210
9162160818
main91621-60818

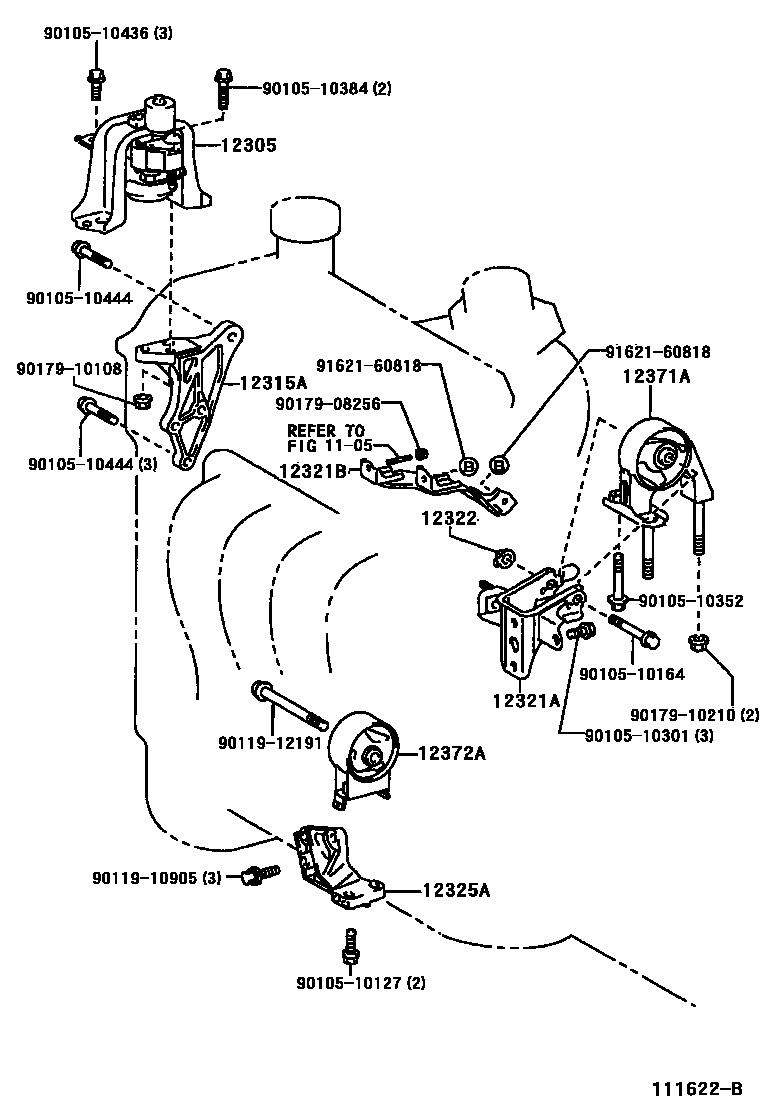

22 parts on this diagram · 1 diagram in section
MOUNTING for Toyota WILL VI
This section contains 22 genuine Toyota parts for the MOUNTING system of the Toyota WILL VI. Key components include: CYLINDER BLOCK, INSULATOR SUB-ASSY, ENGINE MOUNTING, RH, BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE), BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE), INSULATOR SUB-ASSY, DRIVE SHAFT HEAT.
