Toyota WILL VI — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-52020-B0i200001-200008

LT.GRAY,TRIM4#

main87810-52020-B0i200008-200108

LT.GRAY,TRIM2#,4#

87810BBULB, INNER REAR VIEW MIRROR LAMP

main90981-14002i200001

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-52010i200001

L=43

main87828-52020i200001

L=39

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-52010i200001

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-52260i200001

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-52240i200001

9015760021

main90157-60021

9017906070

main90179-06070

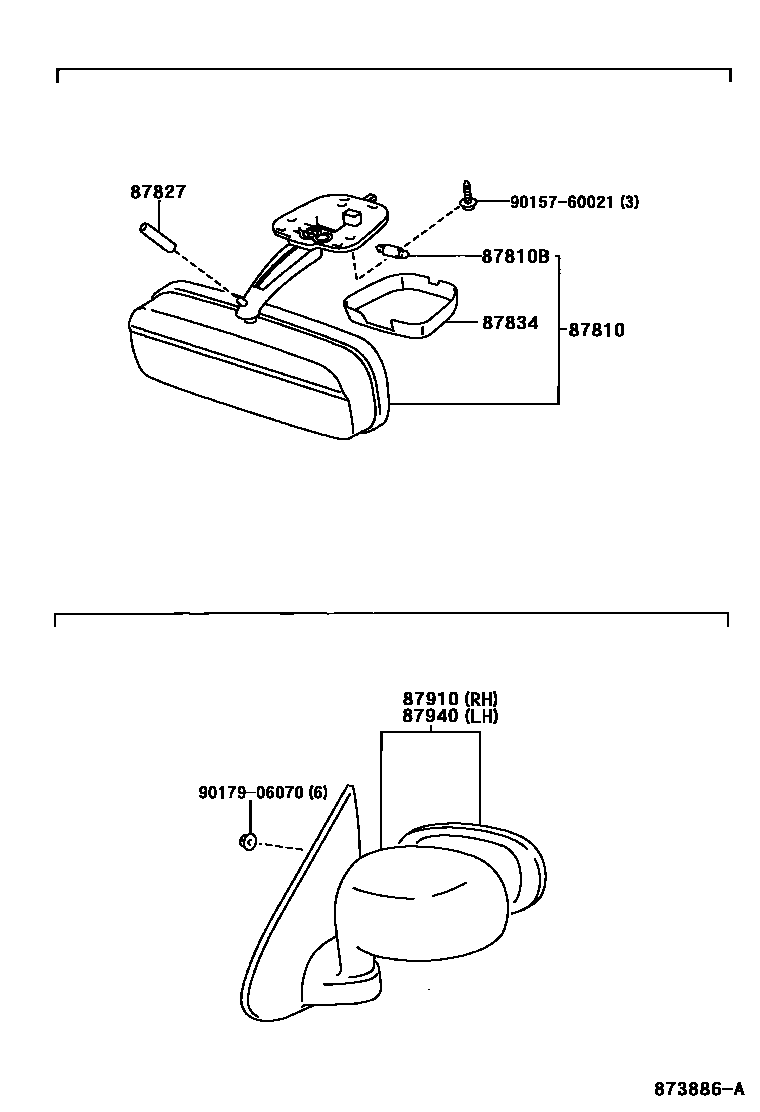

8 parts on this diagram · 1 diagram in section

MIRROR for Toyota WILL VI

This section contains 8 genuine Toyota parts for the MIRROR system of the Toyota WILL VI. Key components include: MIRROR ASSY, INNER REAR VIEW, BULB, INNER REAR VIEW MIRROR LAMP, ABSORBER, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH.
