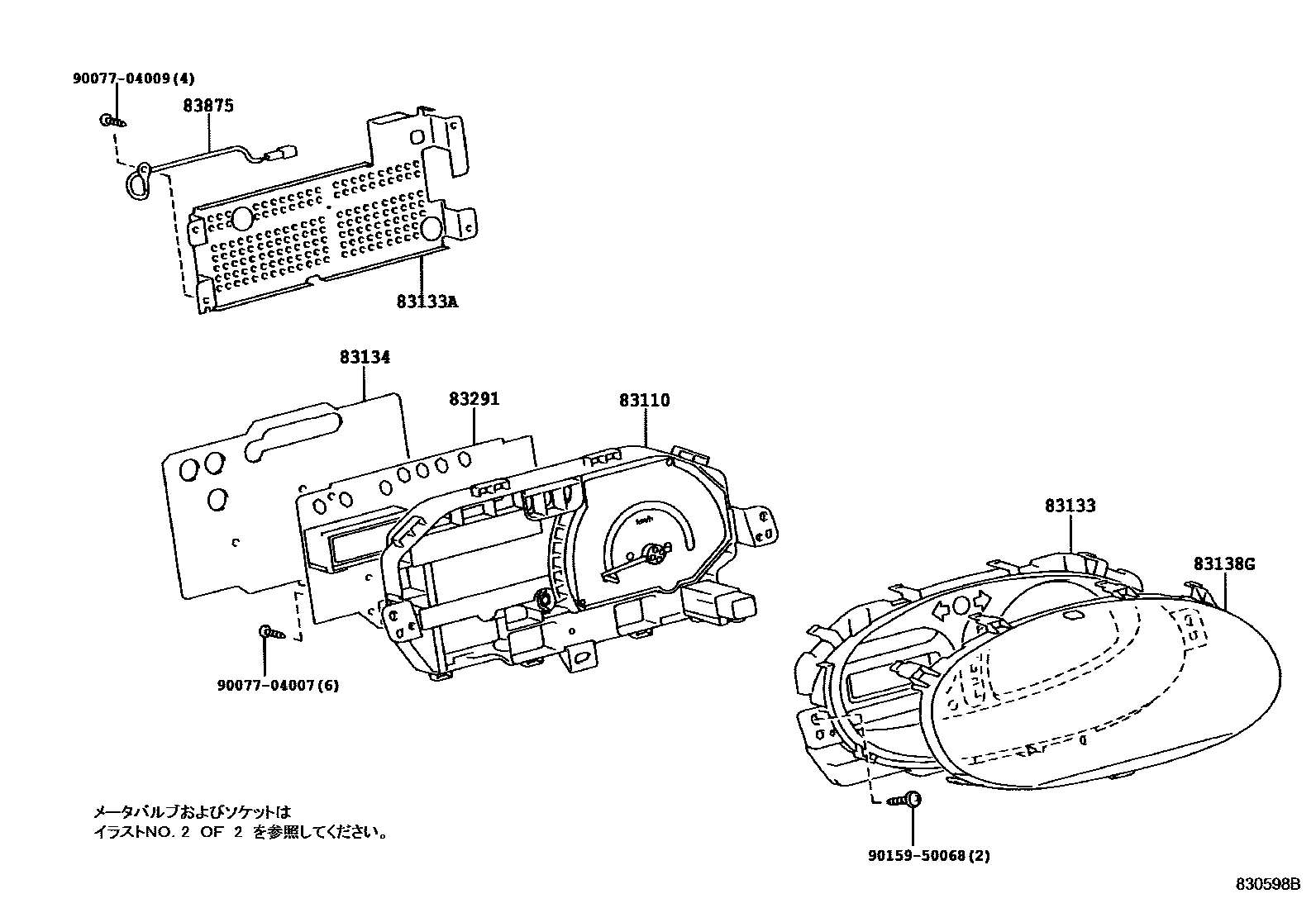

Toyota WILL VI — METER

0001 1������������ 0002 1����� & ����

83110SPEEDOMETER ASSY

main83221-52130iNCP19200001

83133PLATE, COMBINATION METER, NO.1

main83811-52560iNCP19200001

83133APLATE, COMBINATION METER, NO.2

main83812-52560iNCP19200001

83134COVER, COMBINATION METER, NO.1

main83821-52340iNCP19200001

83138GGLASS, COMBINATION METER

main83852-52340iNCP19200001

83291COMPUTER, COMBINATION METER

main83291-52150iNCP19200001-200002

sub83291-52151

main83291-52260iNCP19200002

83875WIRE, COMBINATION METER, NO.1

main83875-52560iNCP19200001

9007704007

main90077-04007

9007704009

main90077-04009

9015950068

main90159-50068

10 parts on this diagram · 2 diagrams in section
