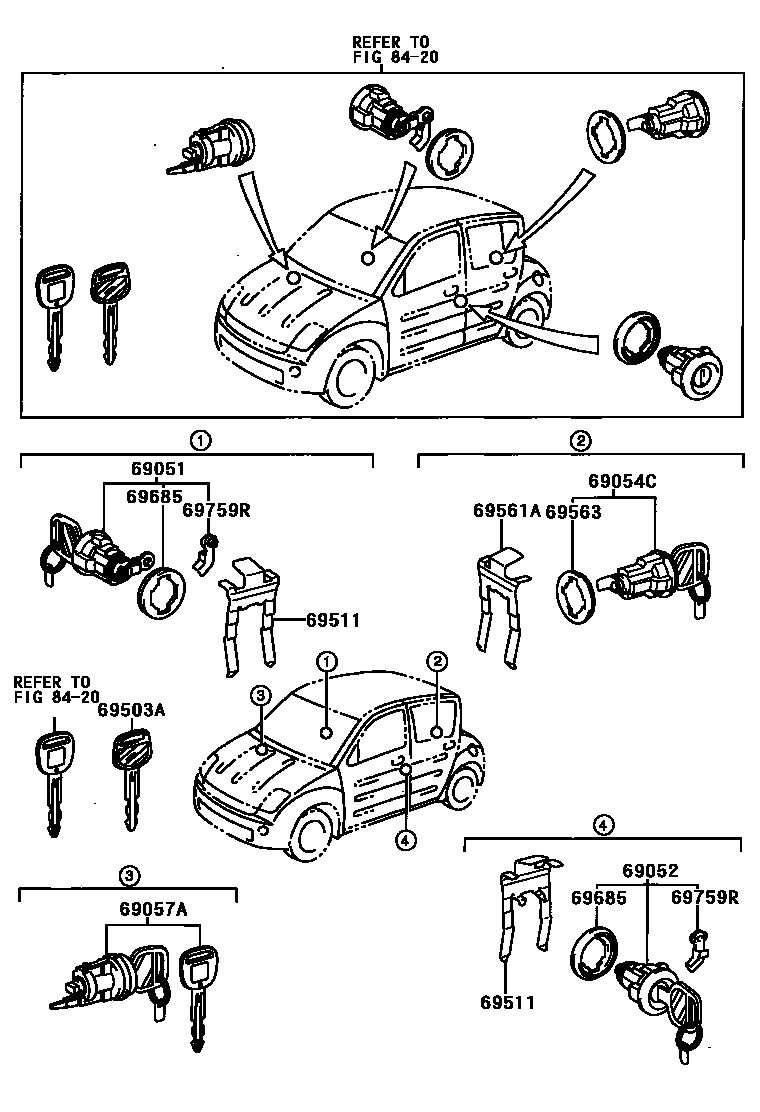

Toyota WILL VI — LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-52130i200001

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-52110i200001

69054CCYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-52160i200001

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-52080i200001

69503AKEY, BLANK

main90999-00241i200001

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-16030×2i200001

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69511-16030i200001

69563PAD, BACK DOOR LOCK CYLINDER

main69563-16060i200001

69685PAD, LOCK CYLINDER

main69563-16050×2i200001

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080i200001

main69759-12090i200001

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

11 parts on this diagram · 1 diagram in section

LOCK CYLINDER SET for Toyota WILL VI

This section contains 11 genuine Toyota parts for the LOCK CYLINDER SET system of the Toyota WILL VI. Key components include: CYLINDER & KEY SET, DOOR LOCK, RH, CYLINDER & KEY SET, DOOR LOCK, LH, CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK, CYLINDER & KEY SET, IGNITION SWITCH LOCK, KEY, BLANK.
