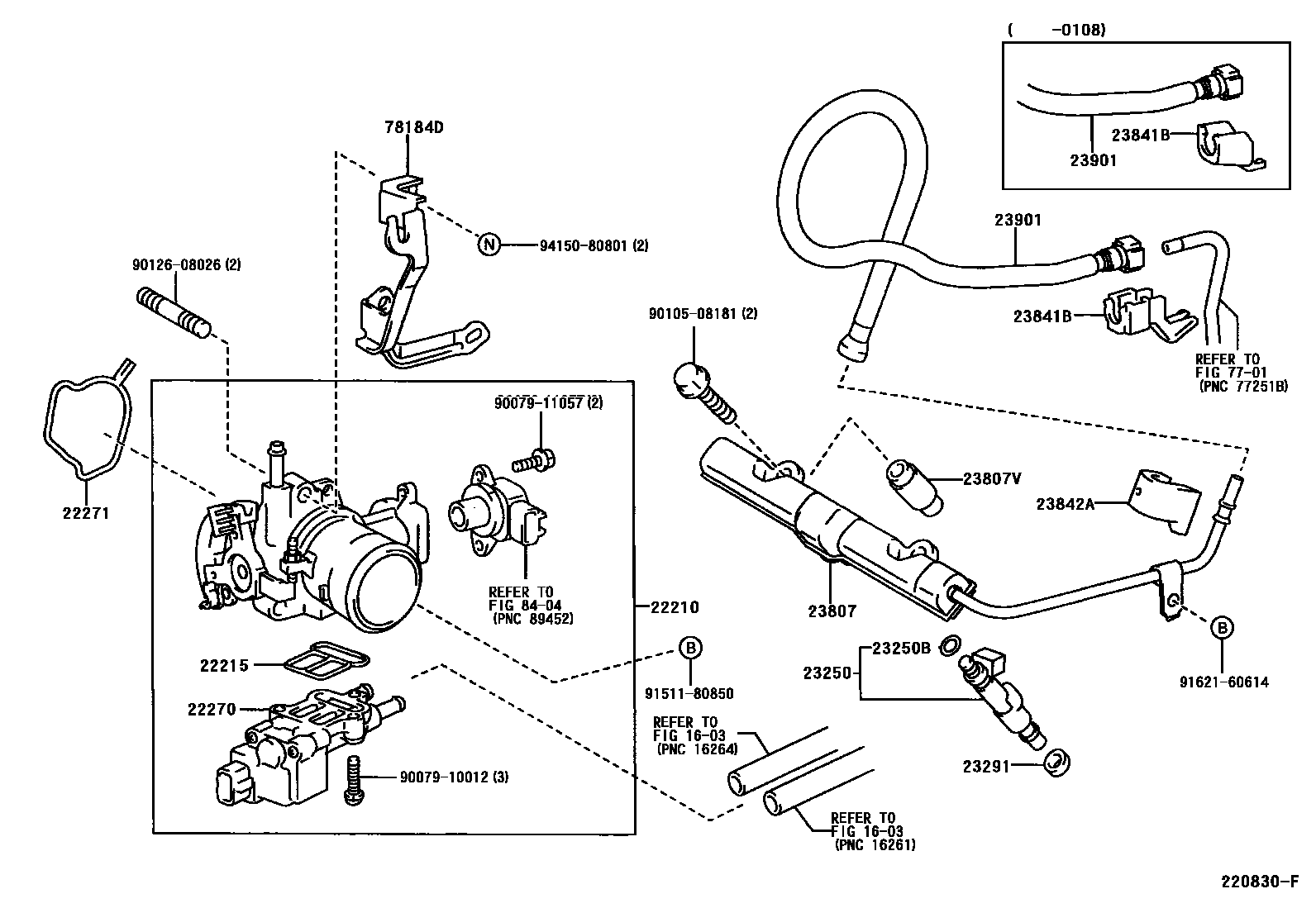

Toyota WILL VI — FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23291INSULATOR, INJECTOR VIBRATION
23807PIPE SUB-ASSY, FUEL DELIVERY
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
7701FUEL TANK & TUBE
78184DBRACKET, ACCELERATOR CONTROL CABLE
8404ELECTRONIC FUEL INJECTION SYSTEM
9007910012
main90079-10012
9007911057
main90079-11057
9010508181
main90105-08181
9012608026
main90126-08026
9151180850
main91511-80850
9162160614
main91621-60614
9415080801
main94150-80801
23 parts on this diagram · 2 diagrams in section
FUEL INJECTION SYSTEM for Toyota WILL VI
This section contains 32 genuine Toyota parts for the FUEL INJECTION SYSTEM system of the Toyota WILL VI. Key components include: RADIATOR & WATER OUTLET, BODY ASSY, THROTTLE, GASKET, THROTTLE BODY COVER, VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY), GASKET, THROTTLE BODY.
