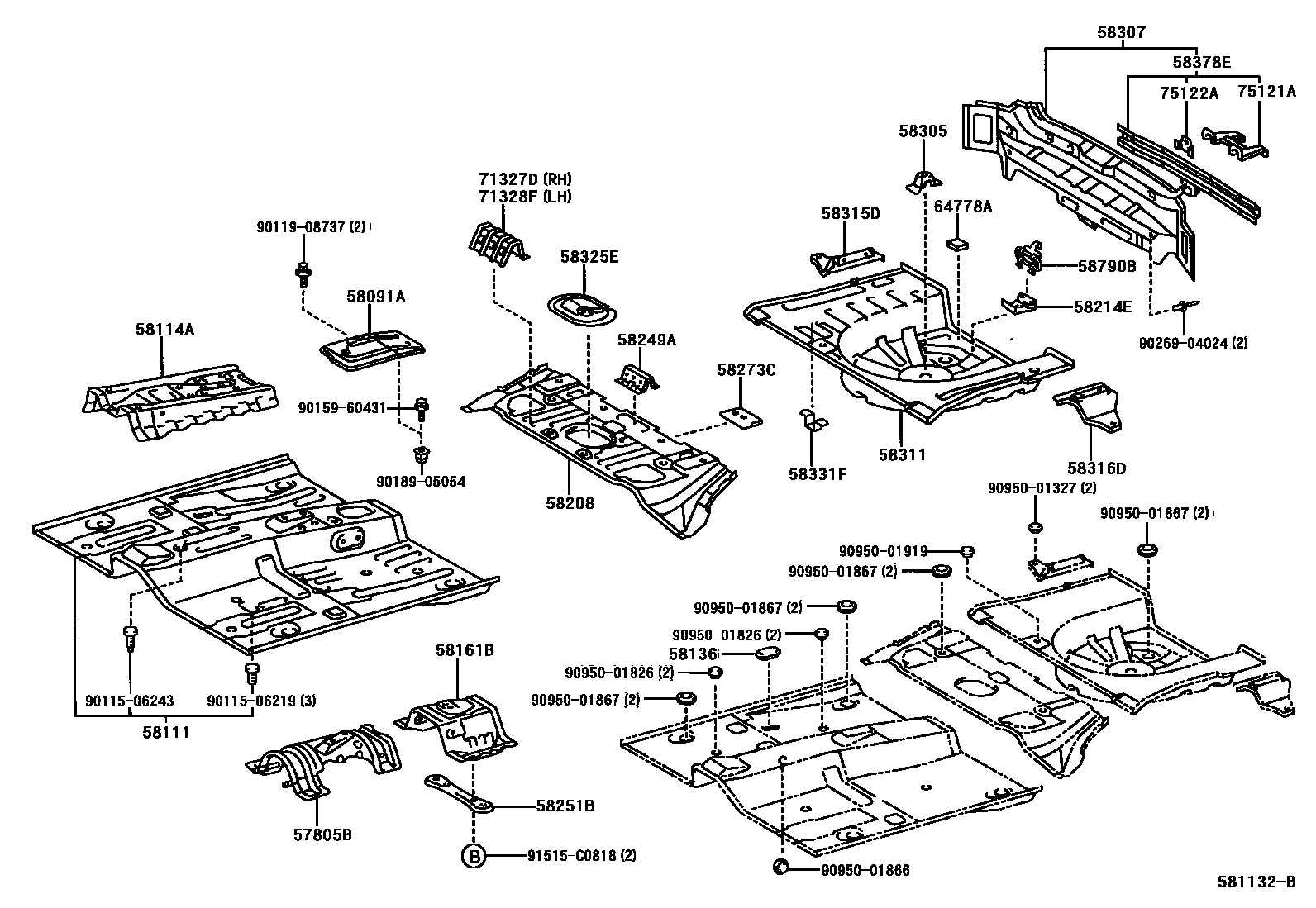

Toyota WILL VI — FLOOR PAN & LOWER BACK PANEL
57805BREINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
58091AREINFORCEMENT SET, BODY FITTING
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
sub58114-52011
58136COVER, FRONT FLOOR HOLE
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58208PAN, CENTER FLOOR
sub90333-30002
58214EBRACKET, JACK SUPPORT
58249AREINFORCEMENT, REAR SEAT MOUNTING
58251BBRACE, FLOOR PANEL, FRONT
58273CREINFORCEMENT, BELT ANCHOR TO CENTER FLOOR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
sub90333-30002
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3
58378EPLATE, BODY LOWER BACK REINFORCEMENT
58790BCARRIER ASSY, JACK
64778APROTECTOR, SPARE WHEEL
71327DBRACKET, REAR SEAT CUSHION SUPPORT, RH
71328FBRACKET, REAR SEAT CUSHION SUPPORT, LH
75121ABRACKET, REAR LICENSE PLATE
75122ABRACKET, REAR LICENSE PLATE, NO.2
9011506219
main90115-06219
9011506243
main90115-06243
9011908737
main90119-08737
9015960431
main90159-60431
9018905054
main90189-05054
9026904024
main90269-04024
9095001327
main90950-01327
9095001826
main90950-01826
9095001866
main90950-01866
9095001867
main90950-01867
9095001919
main90950-01919
91515C0818
main91515-C0818
37 parts on this diagram · 1 diagram in section
