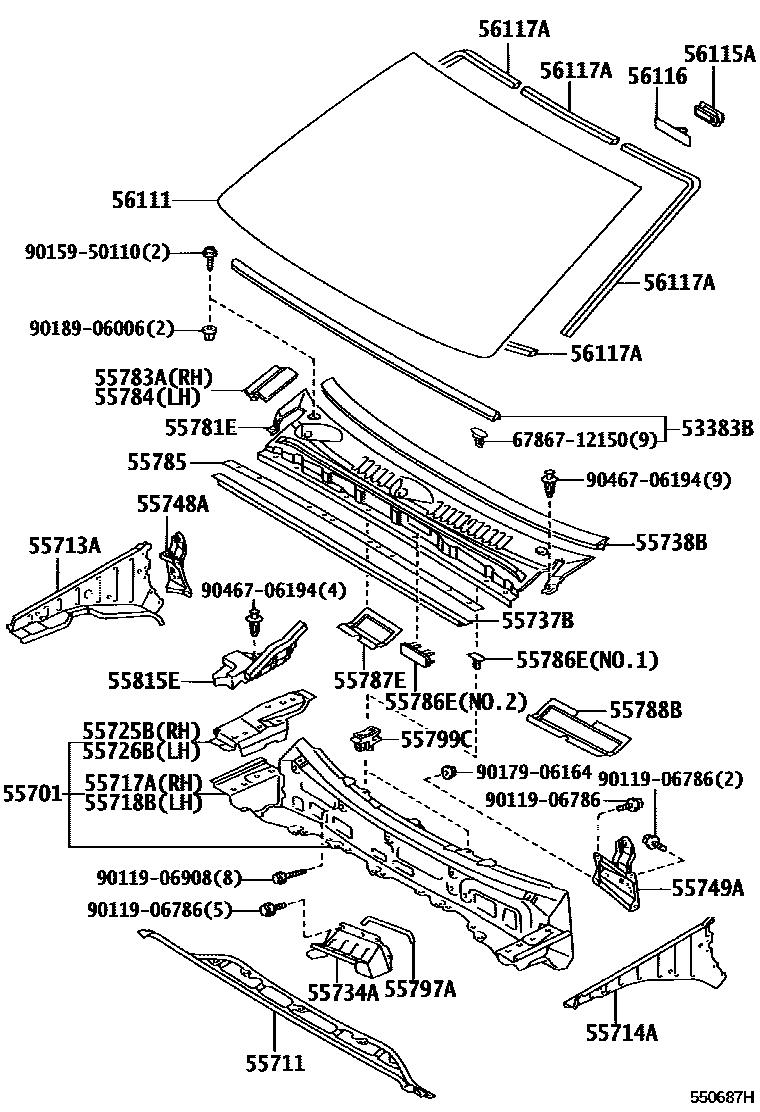

Toyota WILL VI — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55701PANEL SUB-ASSY, COWL
55711PANEL, COWL TOP, OUTER
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55725BREINFORCEMENT, HOOD HINGE MOUNTING
55726BREINFORCEMENT, HOOD HINGE MOUNTING, LH
55734APLATE, WATER GUARD, RH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738BPROTECTOR, FRONT PANEL COVER, NO.1
55748ABRACE, COWL TOP INNER TO PILLAR
55749ABRACE, COWL TOP INNER TO PILLAR, LH
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55783APAD, COWL TOP SILENCER
55784PAD, COWL OUTER PANEL, NO.1
55787ENET, COWL TOP VENTILATOR LOUVER, CENTER NO.1
55788BNET, COWL TOP VENTILATOR LOUVER, CENTER NO.2
55797ASEAL, COWL WATER EXTRACT
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116SPACER, WINDSHIELD GLASS
6786712150CLIP, DOOR WEATHERSTRIP
main67867-12150
9011906786
main90119-06786
9011906908
main90119-06908
9015950110
main90159-50110
9017906164
main90179-06164
9018906006
main90189-06006
9046706194
main90467-06194
35 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota WILL VI
This section contains 35 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota WILL VI. Key components include: SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, PANEL, COWL TOP, OUTER, PANEL, COWL TOP SIDE, RH, PANEL, COWL TOP SIDE, LH.
