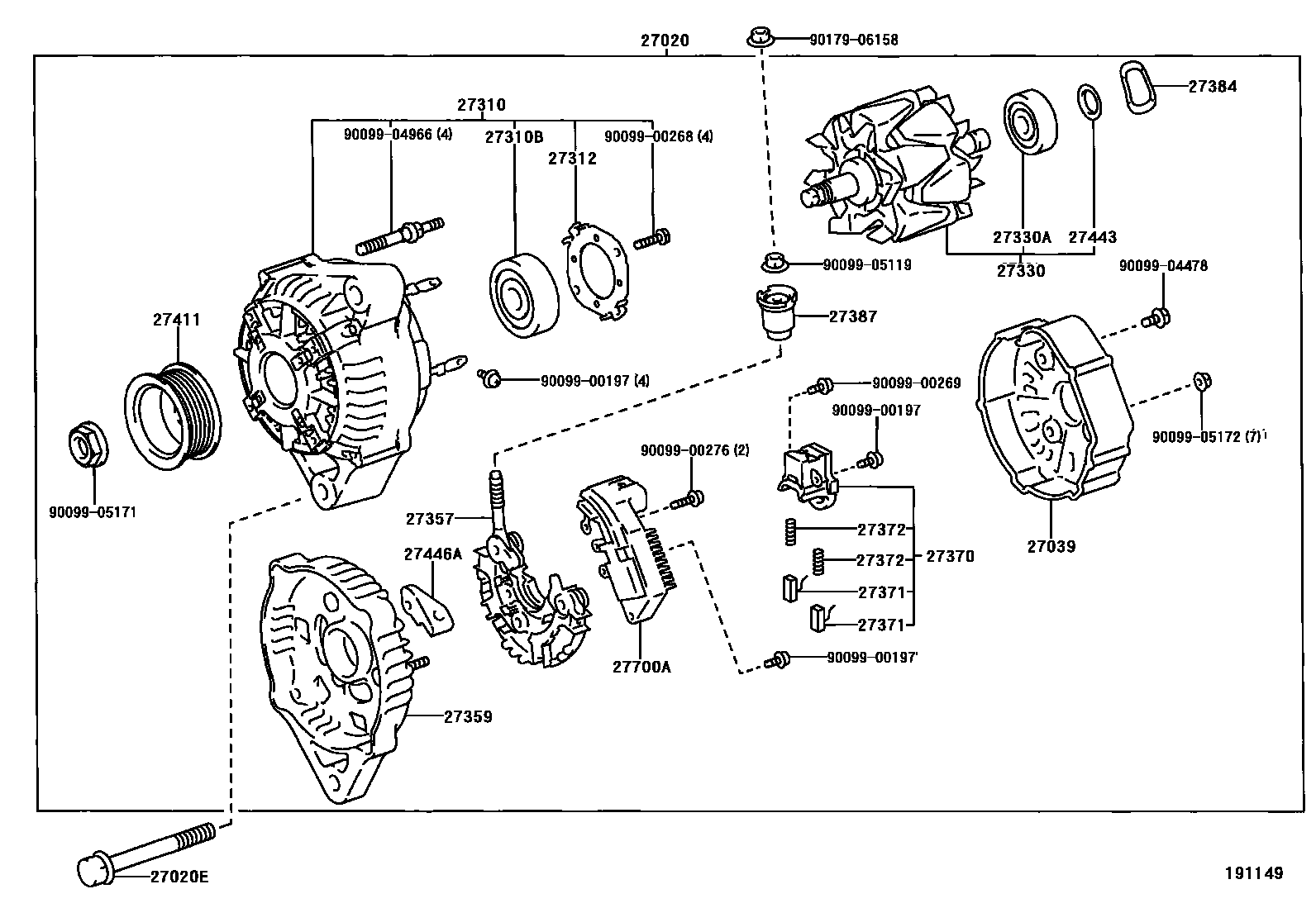

Toyota WILL VI — ALTERNATOR
27020ALTERNATOR ASSY
27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27330ABEARING(FOR ALTERNATOR ROTOR)
27357HOLDER, ALTERNATOR, W/RECTIFIER
27359FRAME, ALTERNATOR RECTIFIER END
27370HOLDER ASSY, ALTERNATOR BRUSH
27371BRUSH, ALTERNATOR
27372SPRING, ALTERNATOR BRUSH
27384WASHER
27387INSULATOR, TERMINAL
27411PULLEY, ALTERNATOR
27443COVER, ALTERNATOR BEARING
27446ACLAMP
27700AREGULATOR ASSY, GENERATOR
9009900197
main90099-00197
9009900268
main90099-00268
9009900269
main90099-00269
9009900276
main90099-00276
9009904478
main90099-04478
9009904966
main90099-04966
9009905119
main90099-05119
9009905171
main90099-05171
9009905172
main90099-05172
9017906158
main90179-06158
29 parts on this diagram · 1 diagram in section
ALTERNATOR for Toyota WILL VI
This section contains 29 genuine Toyota parts for the ALTERNATOR system of the Toyota WILL VI. Key components include: ALTERNATOR ASSY, BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
