Toyota WILL VI — ABS & VSC

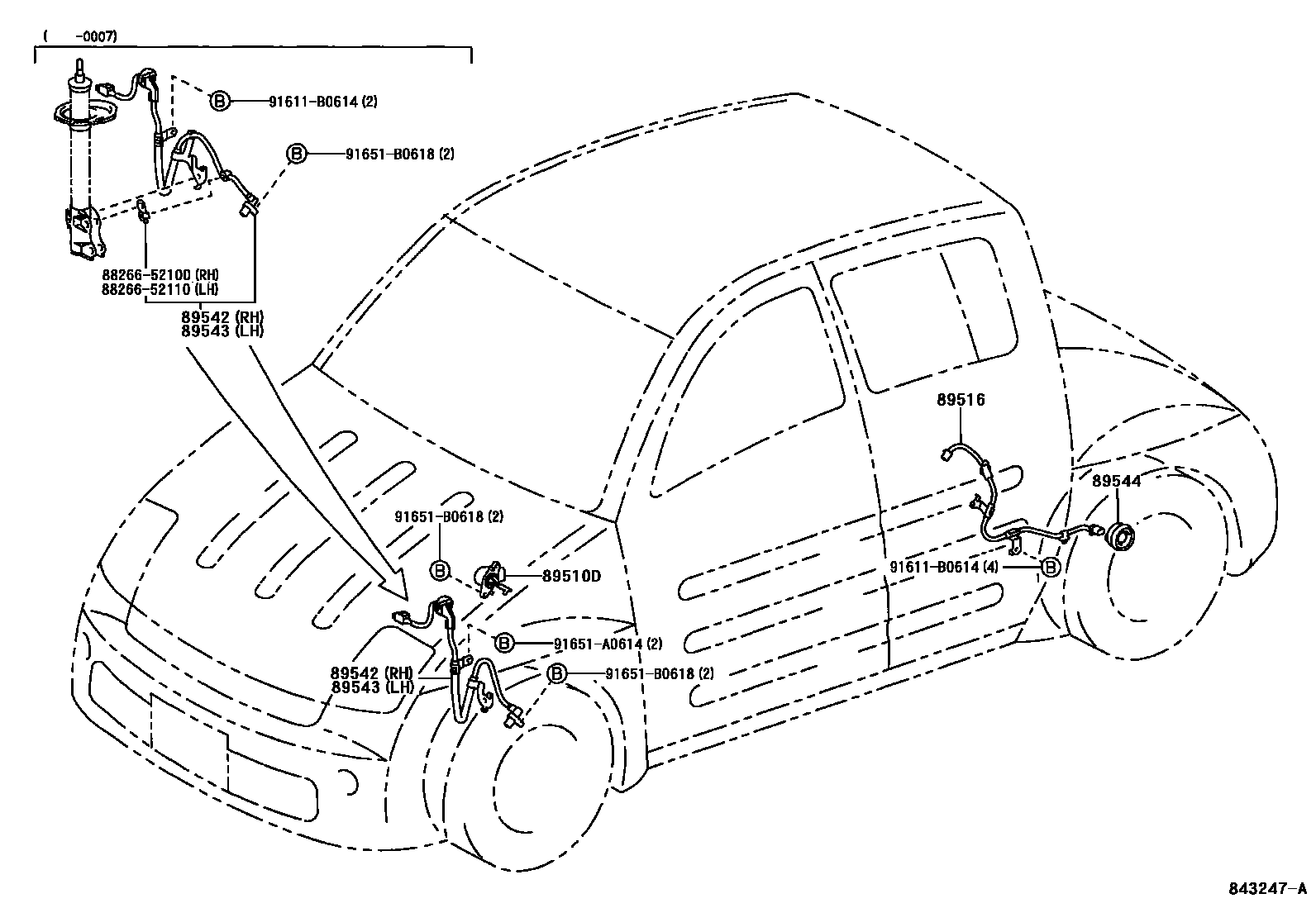

Parts diagram

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-46010i200001

89516WIRE, SKID CONTROL SENSOR

main89516-52010i200001

main89516-52020i200001

89542SENSOR, SPEED, FRONT RH

main04895-52010i200001-200007

main89542-52010i200007

89543SENSOR, SPEED, FRONT LH

main04895-52020i200001-200007

main89543-52010i200007

89544SENSOR, SKID CONTROL

main89544-52010×2i200001

main89544-52020×2i200001

8826652100CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-52100

8826652110CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-52110

91611B0614

main91611-B0614

91651A0614

main91651-A0614

91651B0618

main91651-B0618

10 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota WILL VI

This section contains 10 genuine Toyota parts for the ABS & VSC system of the Toyota WILL VI. Key components include: SENSOR ASSY, BRAKE PEDAL STROKE, WIRE, SKID CONTROL SENSOR, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SKID CONTROL.
