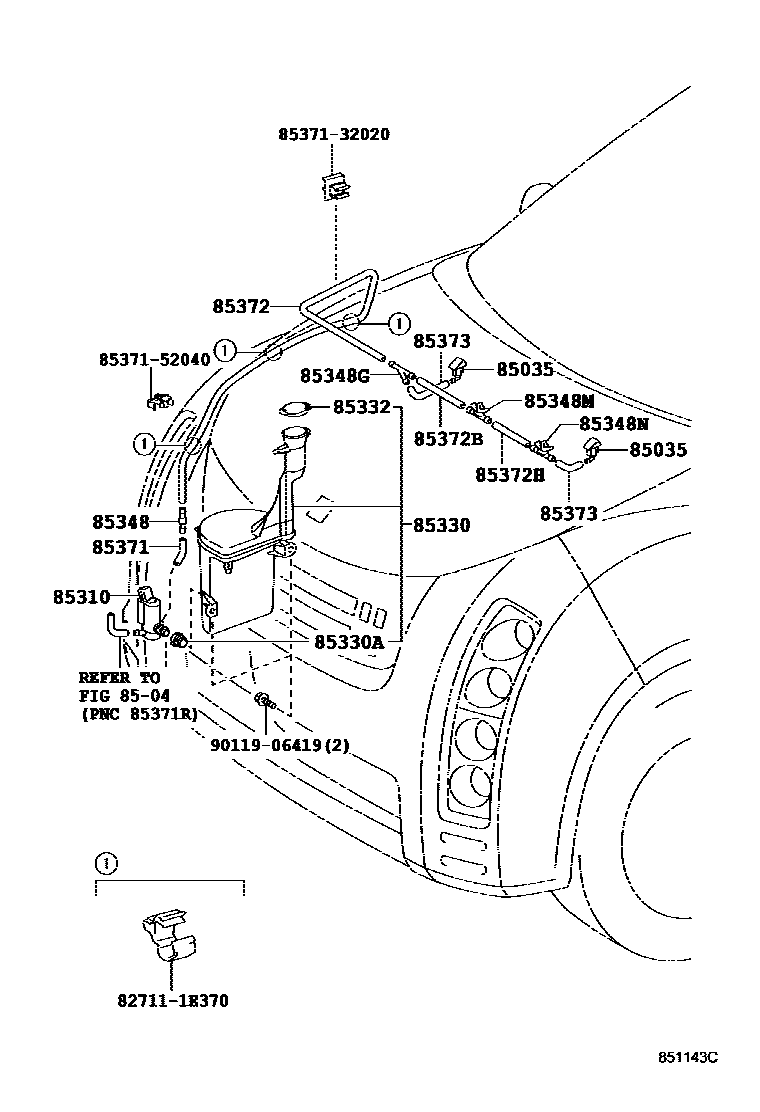

Toyota WILL CYPHA — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-68010iNCP7#200209-200507

8504

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-10290iNCP7#200209-200507

85330JAR ASSY, WINDSHIELD WASHER

main85315-52030iNCP7#200209

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNCP7#200209

85332CAP, WINDSHIELD WASHER JAR

main85316-42011iNCP7#200209

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNCP7#200209

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85348-14390iNCP7#200209

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85375-20800iNCP7#200209

85348NJOINT, WINDSHIELD WASHER HOSE, NO.4

main85375-20800iNCP7#200209

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNCP7#200209

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iNCP7#200209

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iNCP7#200209

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-07001iNCP7#200209

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iNCP7#200209

827111E370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E370

8537132020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-32020

8537152040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-52040

9011906419

main90119-06419

19 parts on this diagram · 1 diagram in section
