Toyota WILL CYPHA — STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45221SHAFT, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45280ABRACKET ASSY, STEERING COLUMN, UPPER
45286COVER, STEERING COLUMN
BLACK,TRIM2#
45897BOLT, STEERING LOCK SET
8401SWITCH & RELAY & COMPUTER
9010508417
main90105-08417
9011908560
main90119-08560
9011908C42
main90119-08C42
9046706188
main90467-06188
9331314012
main93313-14012
9356855014
main93568-55014

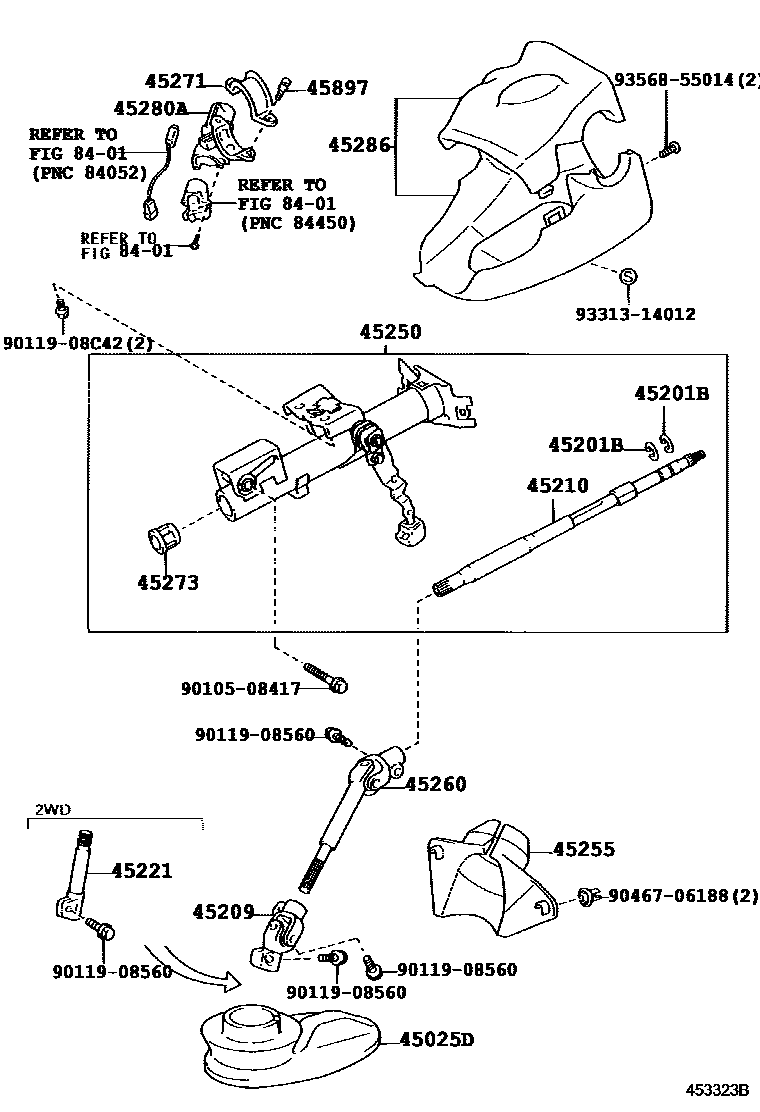

20 parts on this diagram · 1 diagram in section
STEERING COLUMN & SHAFT for Toyota WILL CYPHA
This section contains 20 genuine Toyota parts for the STEERING COLUMN & SHAFT system of the Toyota WILL CYPHA. Key components include: COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1, RING, SHAFT SNAP(FOR STEERING MAIN SHAFT), YOKE SUB-ASSY, STEERING SLIDING, SHAFT ASSY, STEERING MAIN, SHAFT, STEERING INTERMEDIATE.
